MIGRATE WINDOWS VM FROM HYPER-V TO AWS

In this blog, we will show you the Migrate Windows VM from Hyper-V to AWS

ENVIRONMENT OVERVIEW

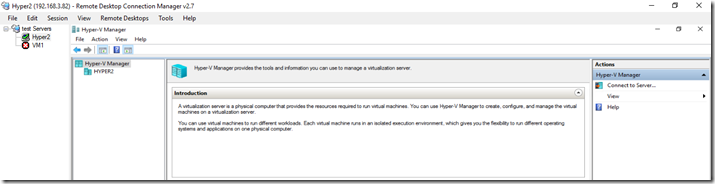

• We have installed Hyper-V Role on windows 2016 server in our Lab environment.

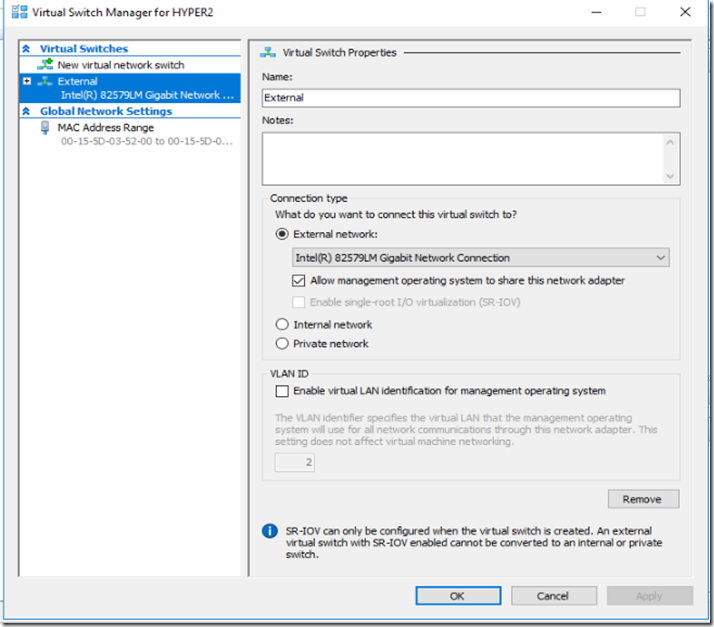

• Also, we have created an external V-switch which will provide internet access to the Hyper-V VMs.

DOWNLOAD AND INSTALL SMS CONNECTOR

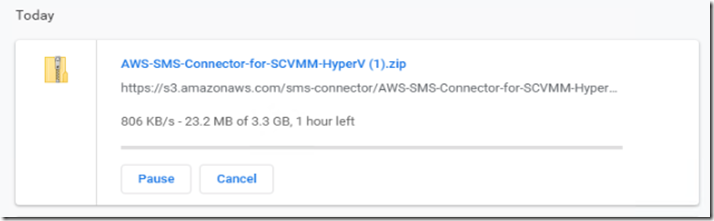

• Open the web browser and download the SMS connector from the below URL.

https://s3.amazonaws.com/sms-connector/AWS-SMS-Connector-for-SCVMM-HyperV.zip

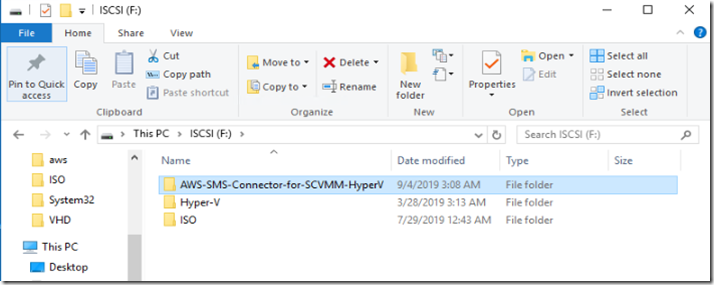

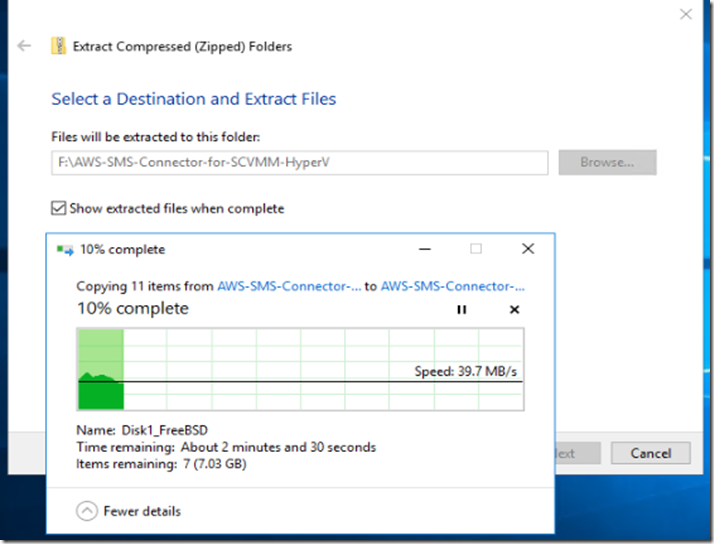

• Extract the files to the desired drive.

IMPORT SMS CONNECTOR VM IN HYPER-V

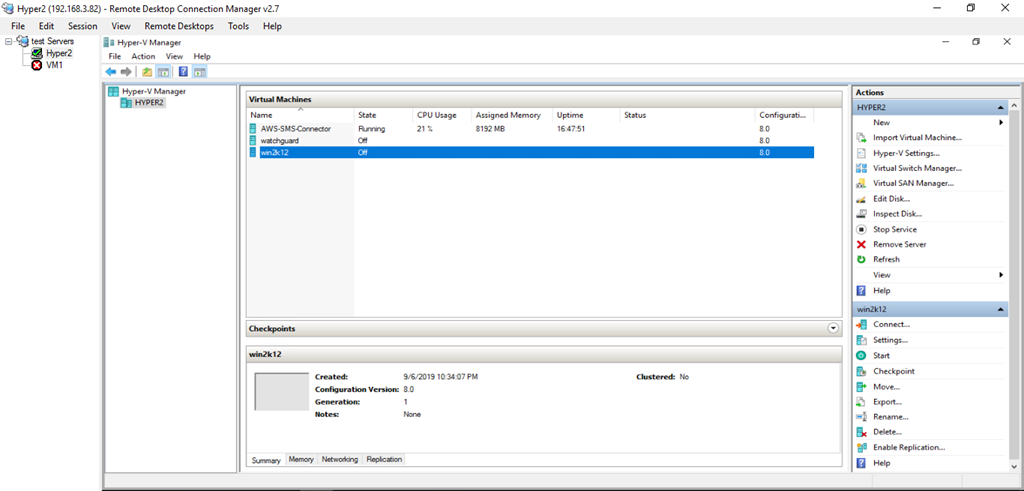

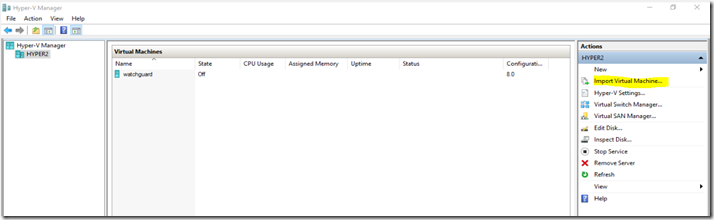

• Open the Hyper-V snap-in and click on the Import Virtual Machine.

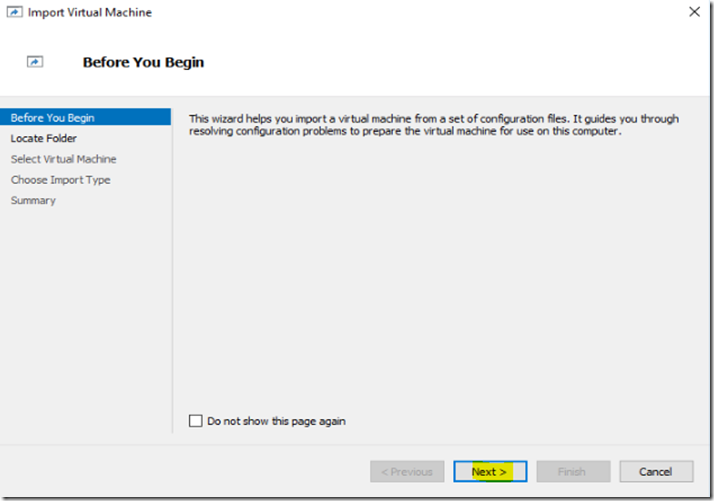

• A new popup window will show up. Click Next to continue.

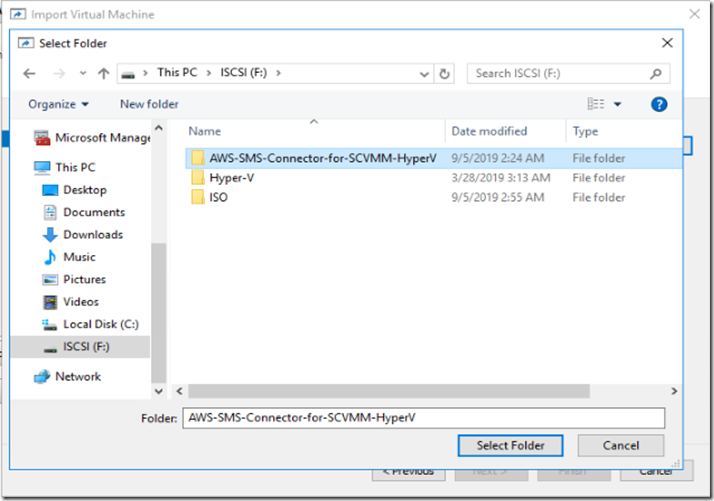

• Provide the SMS connector folder which we extracted earlier.

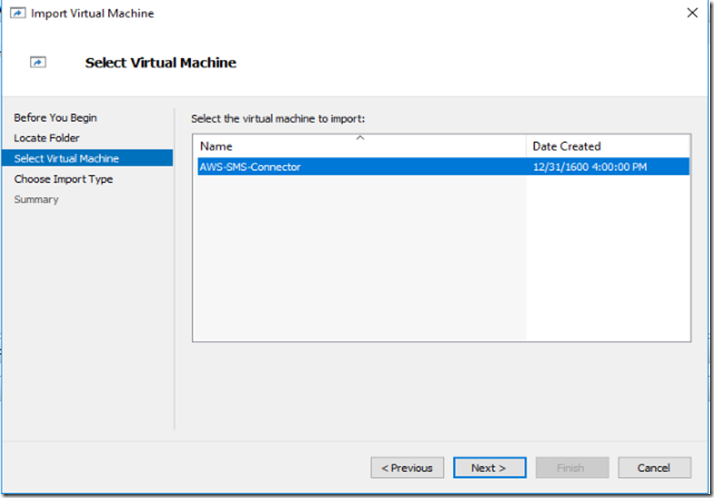

• Select the Virtual Machine from the list.

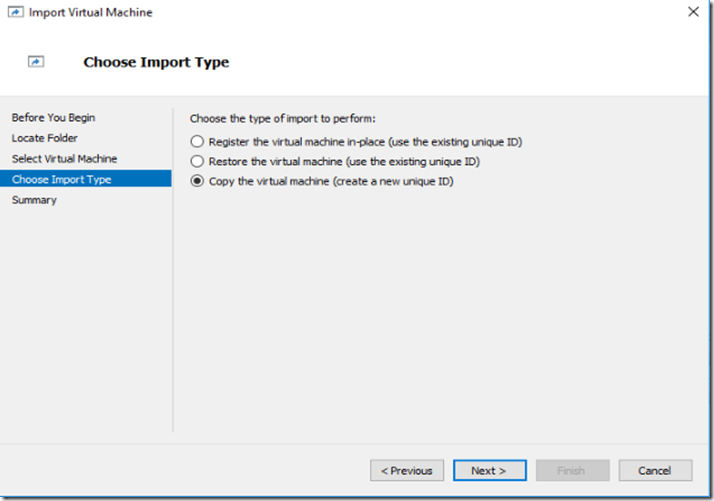

• Select the Copy the virtual machine (create a new unique ID) option.

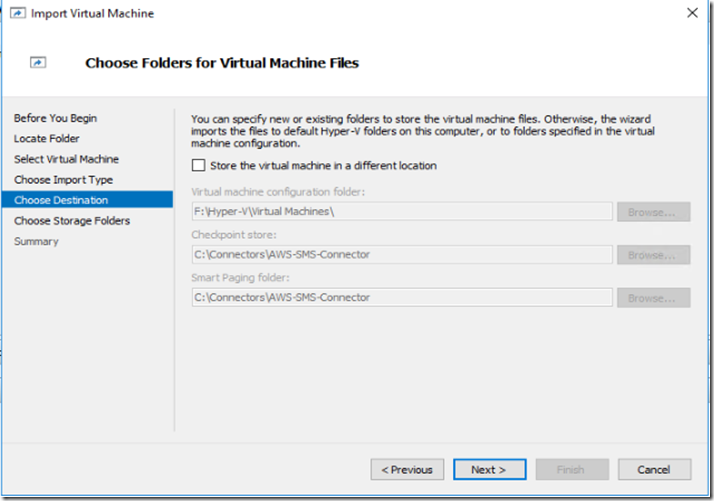

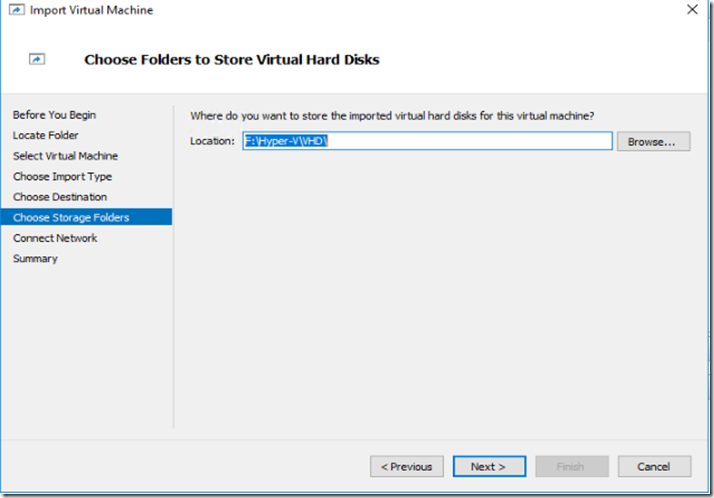

• You can choose the different file location to store the VHD files or leave defaults.

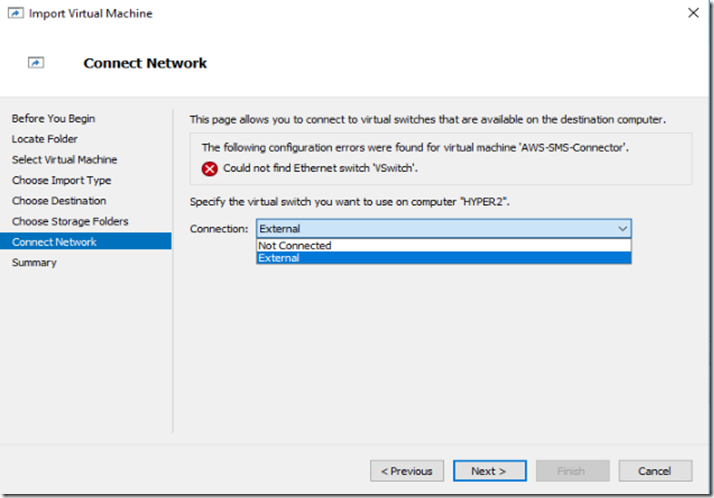

• Select the correct external virtual switch from the drop-down list.

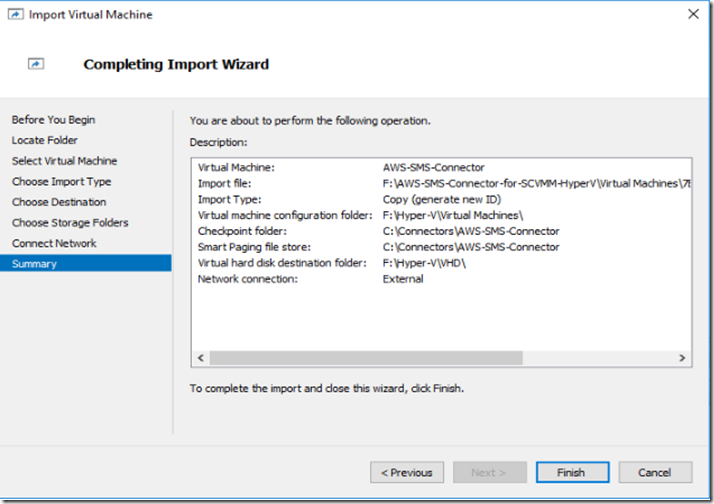

• Review the settings and click on the Finish button.

CONFIGURING AWS SMS CONNECTOR

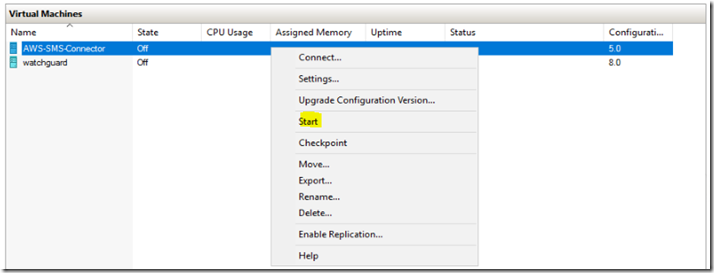

• Power on the SMS Connector VM.

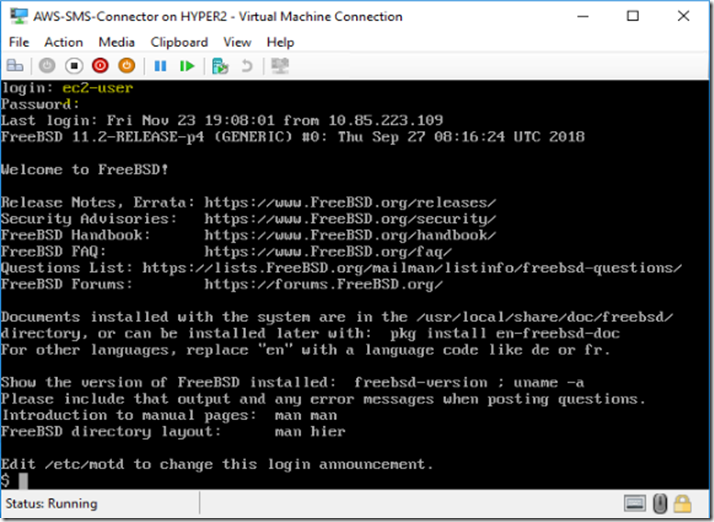

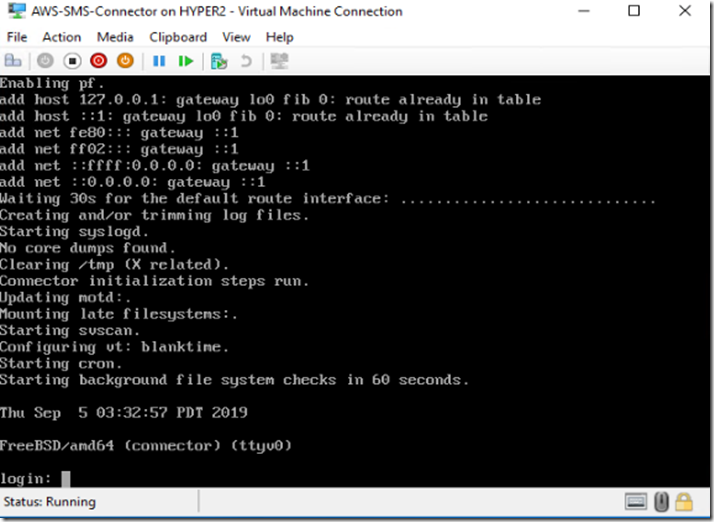

• After a few seconds, the system will prompt for login credentials.

• Type the username as ec2-user and password as ec2pass.

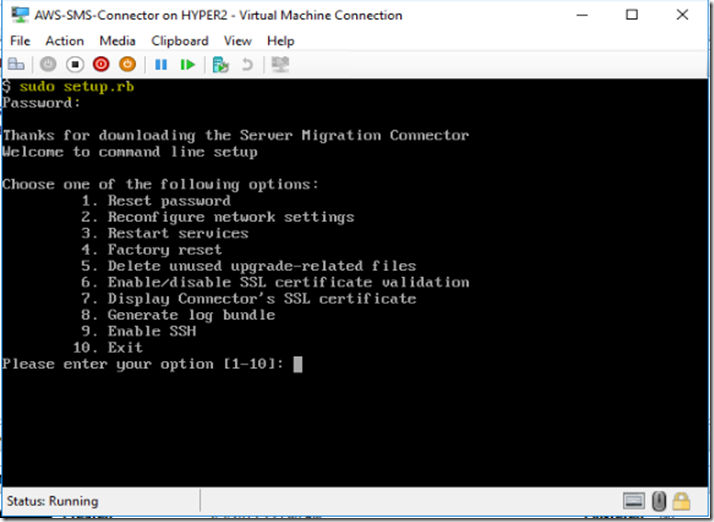

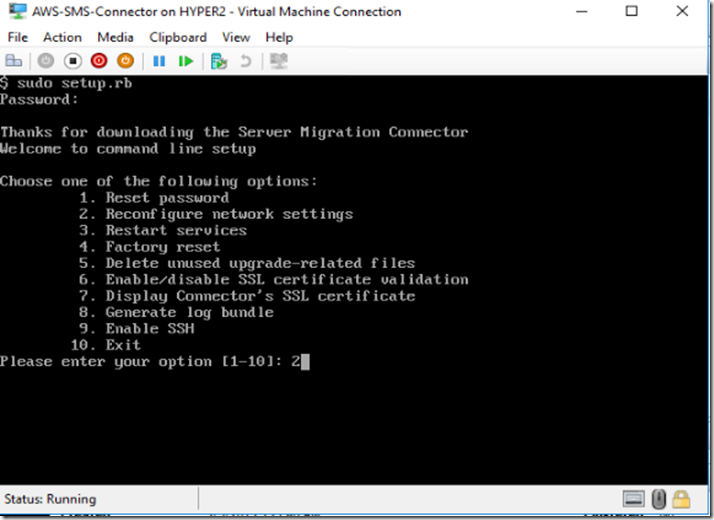

• Run the sudo setup.rb command to display the configuration menu. Type ec2pass as a password when it prompts.

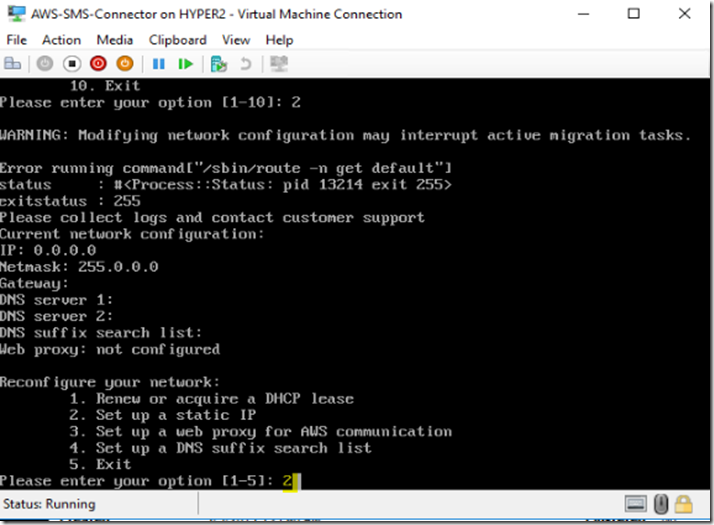

• Type 2 to reconfigure the network settings on this VM.

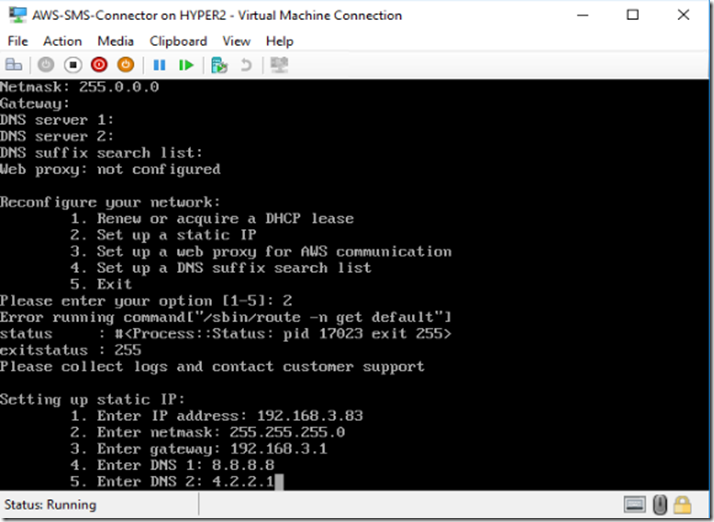

• Again type 2 to setup static IP.

• Provide the IP information for this VM.

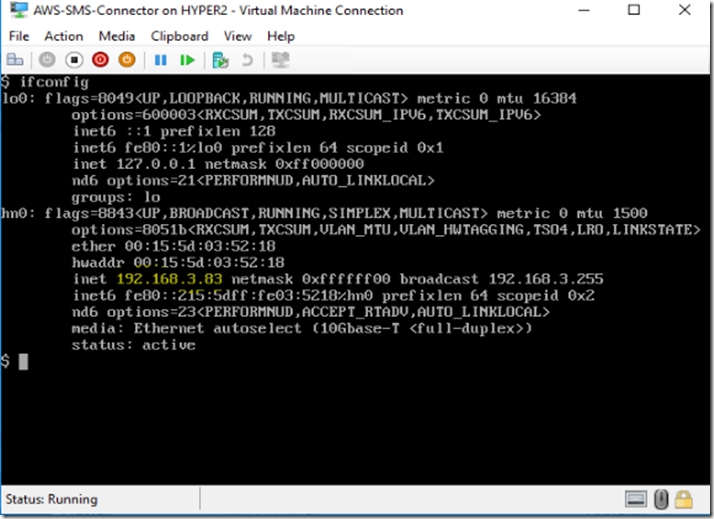

• IP has been configured successfully.

INSTALLING HYPER-V CONFIGURATION SCRIPT

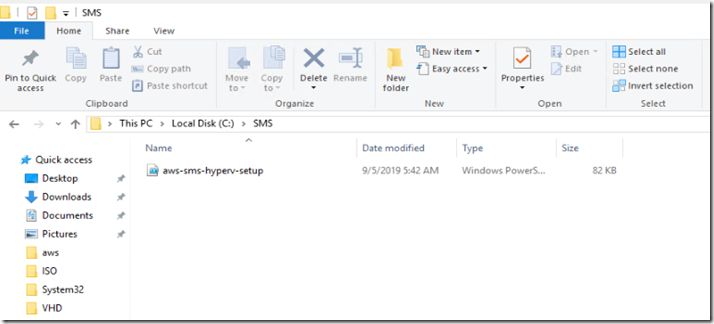

• Download the Hyper-V Configuration script from this URL https://s3.amazonaws.com/sms-connector/aws-sms-hyperv-setup.ps1 and save it in a folder.

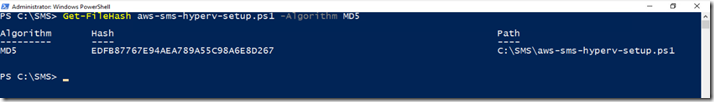

• Open the PowerShell window and type the below command to verify the MD5 Hash.

Get-FileHash aws-sms-hyperv-setup.ps1 -Algorithm MD5

• Use the below command to validate the SHA256.

Get-FileHash aws-sms-hyperv-setup.ps1 -Algorithm SHA256

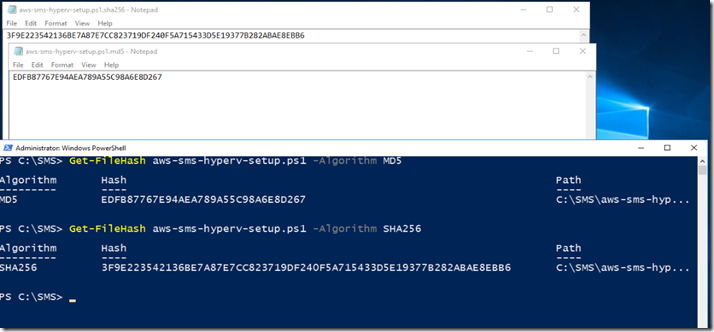

• Download the below files and compare the above MD5 and SHA256 values.

https://s3.amazonaws.com/sms-connector/aws-sms-hyperv-setup.ps1.md5

https://s3.amazonaws.com/sms-connector/aws-sms-hyperv-setup.ps1.sha256

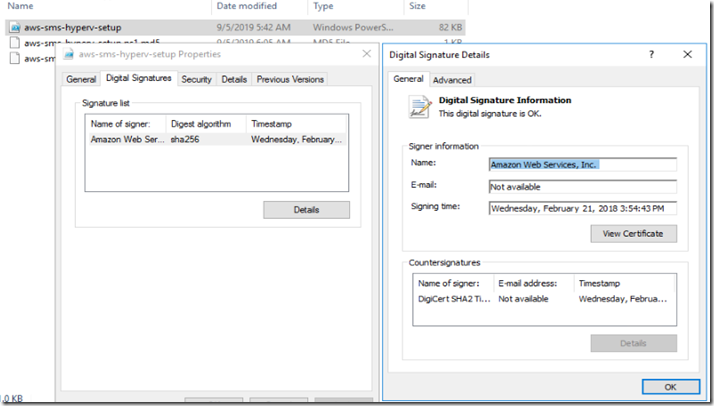

• Also, we need to check the digital signature of aws-sms-hyperv-setup.ps1 file and make sure it’s signed for AWS.

• We set the execution policy to unrestricted in our demo environment to execute the PowerShell Scripts.

set-executionpolicy unrestricted

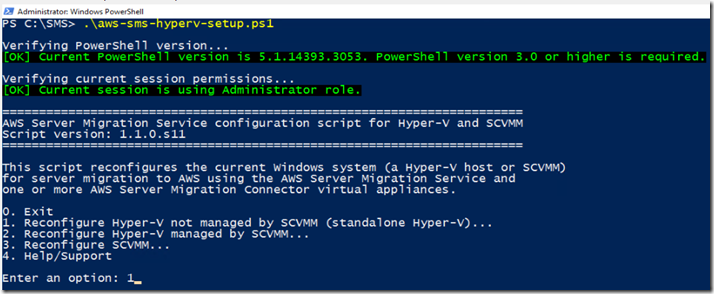

• Now, execute the aws-sms-hyperv-setup.ps1 file. We select the option 1 as per our Lab environment.

• Provide the IP address of the SMS connector VM.

• Provide the username which has administrator permission for Hyper-V. Also, allow the script to make changes in windows system configuration.

• Script completed successfully.

CONFIGURING HYPER-V SMS CONNECTOR

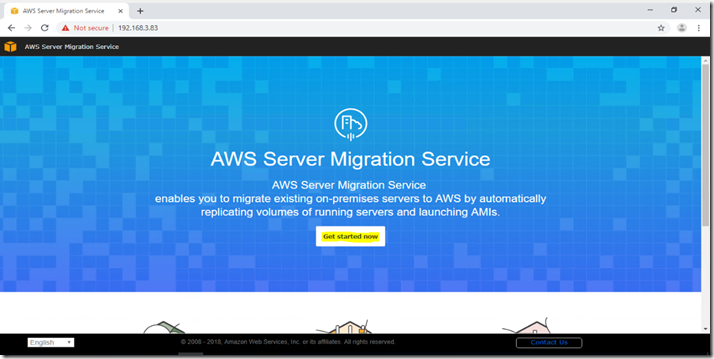

• Browse the AWS SWS Connector VM IP through a web browser. Click on Get started now.

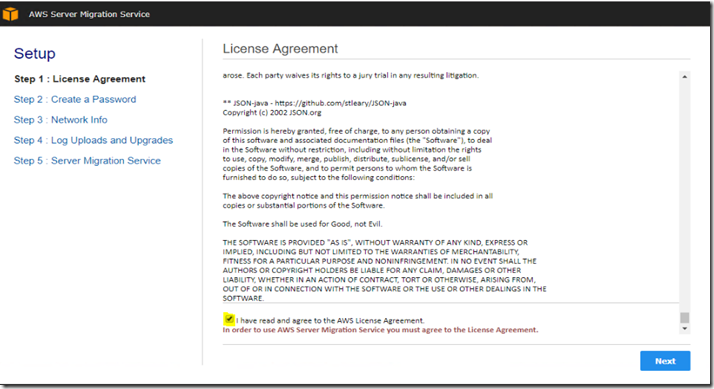

• Review the License Agreement and click Next.

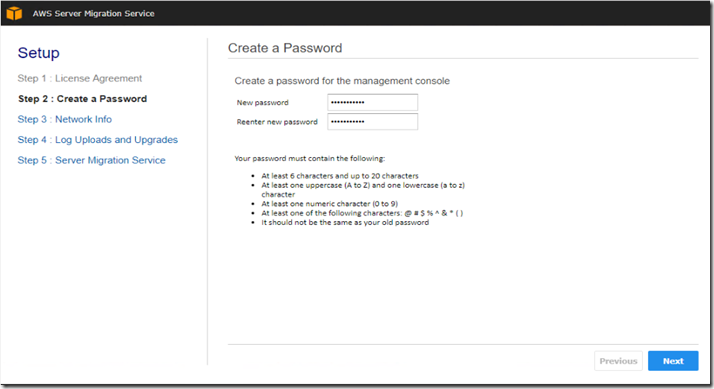

• Provide a password for the management console.

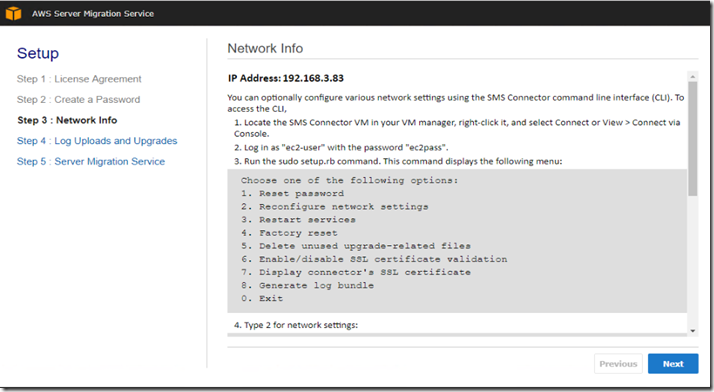

• Verify the network configuration information.

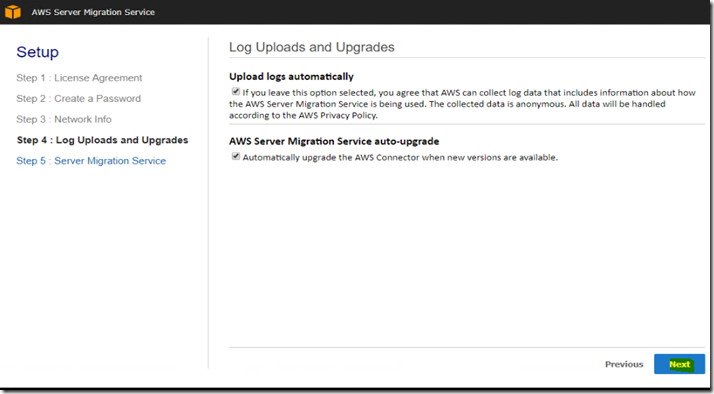

• In the Log Log Uploads and Upgrades page, select Upload logs automatically & AWS Server Migration Service auto-upgrade checkboxes.

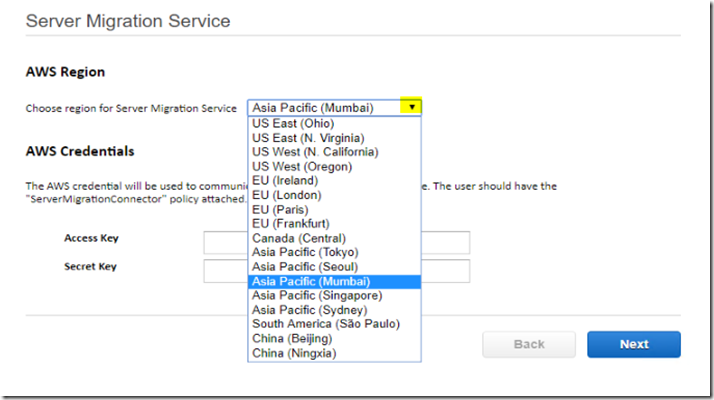

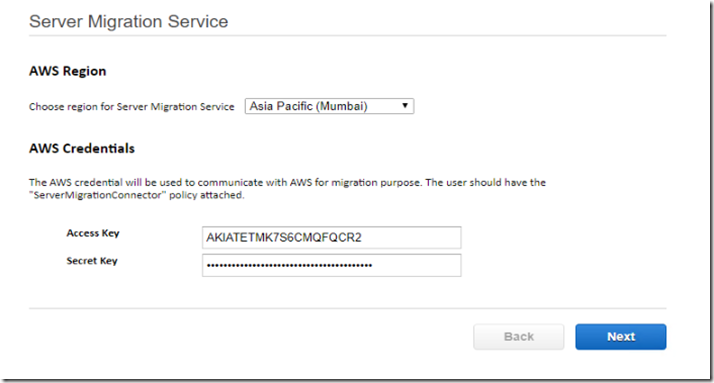

• Select the region where our migrated VMs to be located.

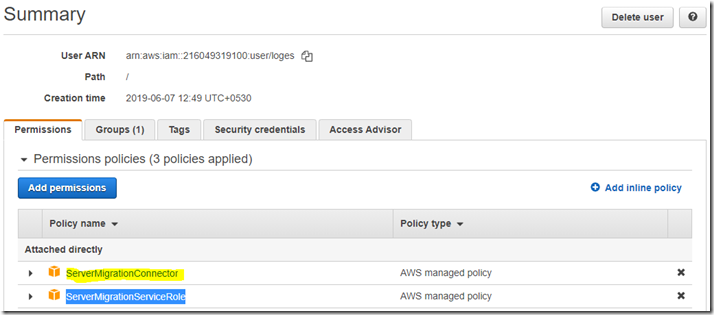

• For AWS credentials, we have created a new user and its members of ServerMigrationConnector & ServerMigrationServiceRole roles.

• Provide Access & Secret key of that server in the relevant section.

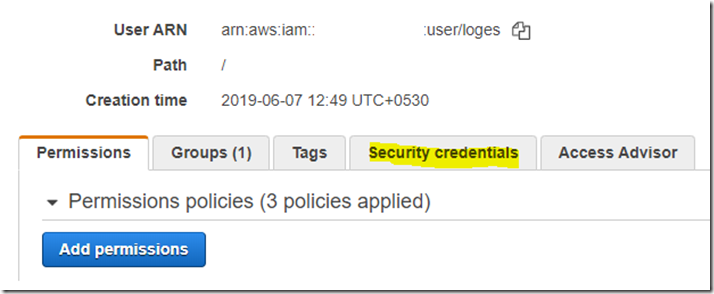

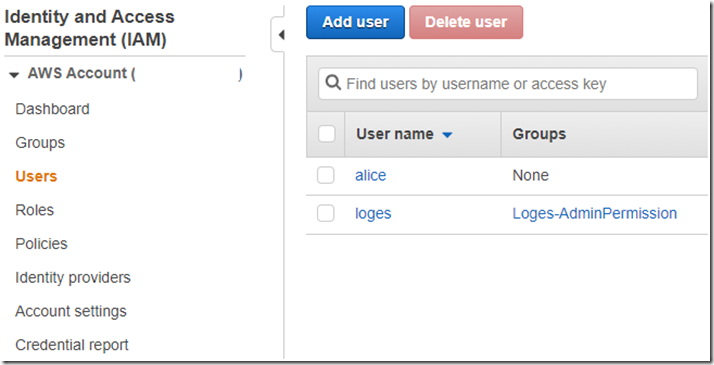

• You can create a new Access & Key through the IAM console. Go to users section and click on the specified username the switch to security credentials.

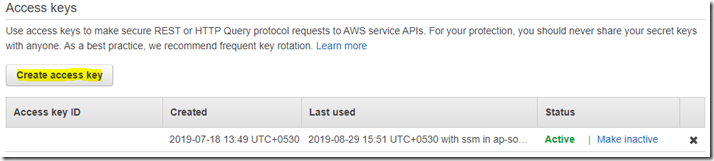

• You can create a new access key by clicking the create button.

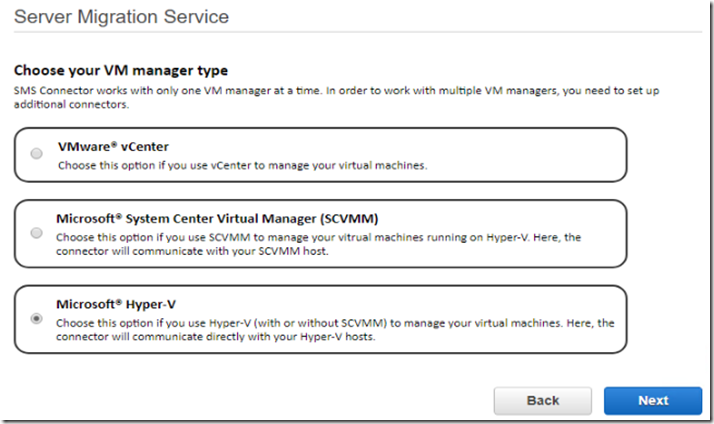

• Choose the VM Manager Type.

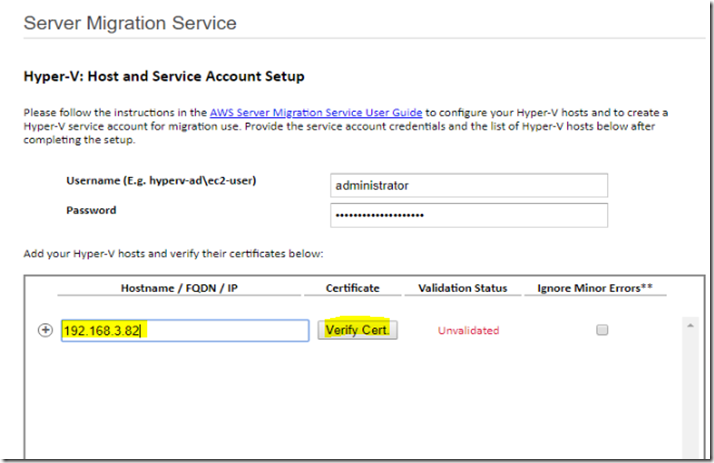

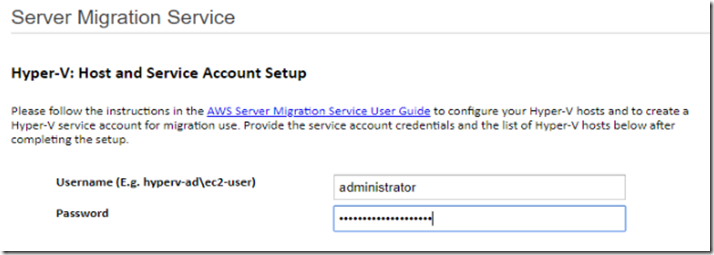

• Provide the Hyper-V Host login credentials.

• Then type the IP of Hyper-V Host and Click on the Verify cert button.

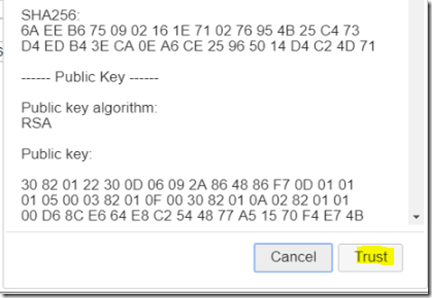

• It will popup a new window, click on the Trust button.

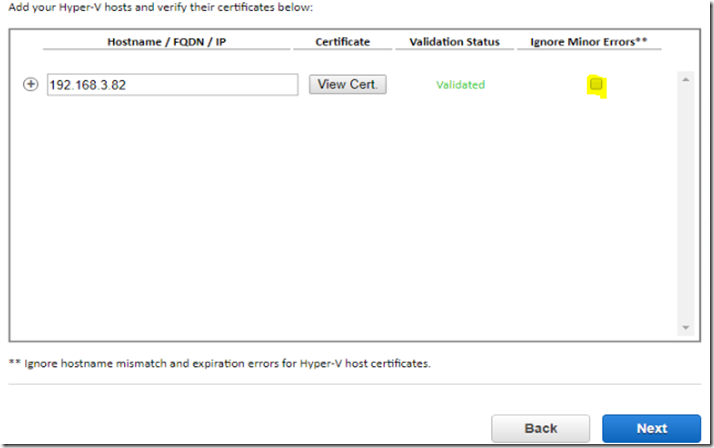

• Make sure that you have selected Ignore Minor Errors

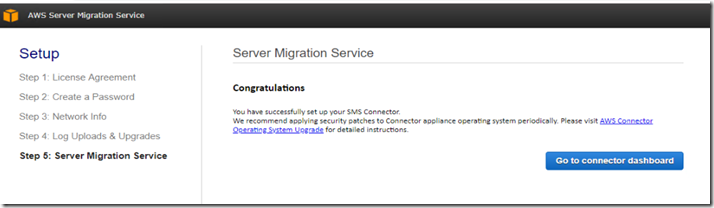

• AWS SMS connector configuration completed successfully.

CREATING IAM ROLE FOR SMS

• Open AWS console and search for the IAM service.

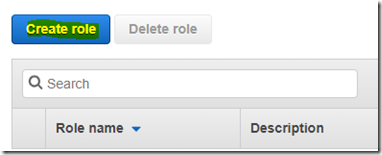

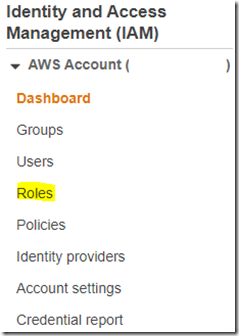

• Then click on Roles – Create Role option.

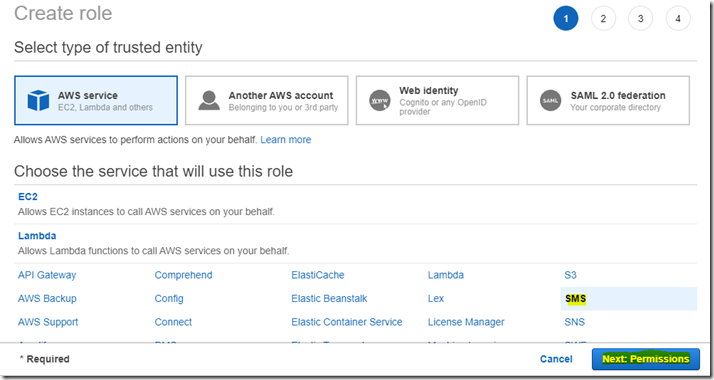

• Select the SMS service and move to the permission page.

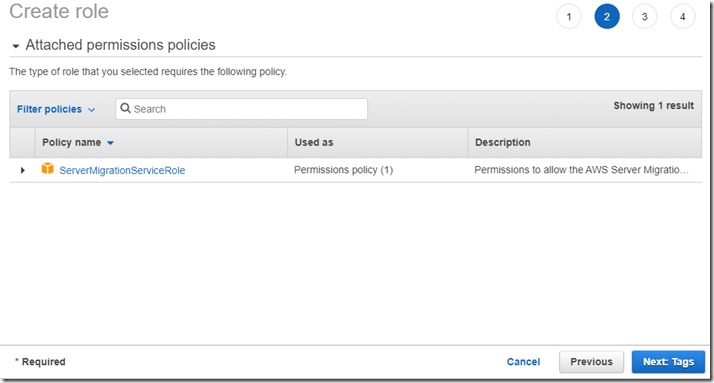

• Make sure that Server Migration Service Role has been added to the list.

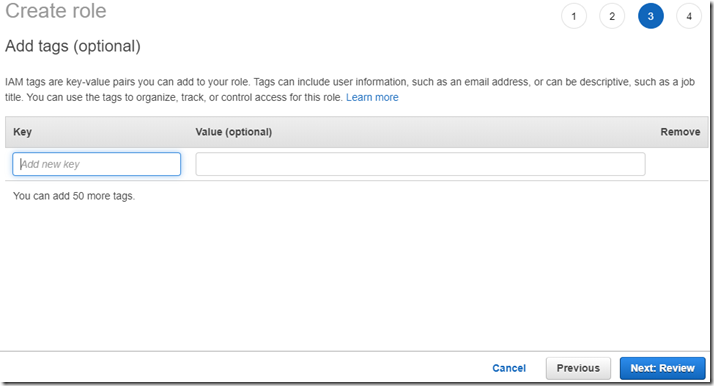

• We leave the tags as default.

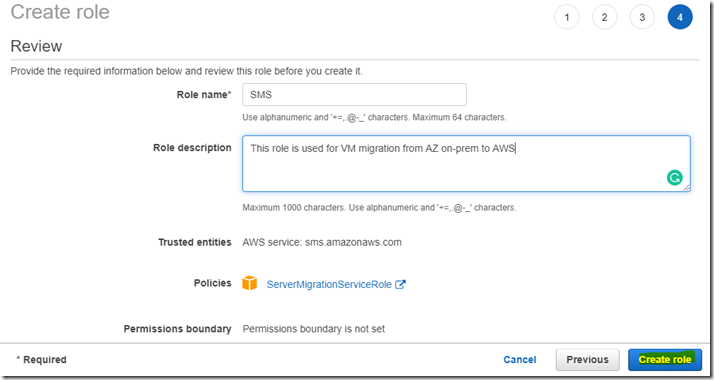

• Provide a name and description for this role and click on Create Role.

• The new role created successfully.

MIGRATE WINDOWS VM HYPER-V TO AWS

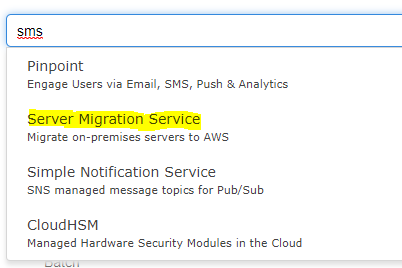

• Go to Server Migration Service (SMS) and click on the connectors link.

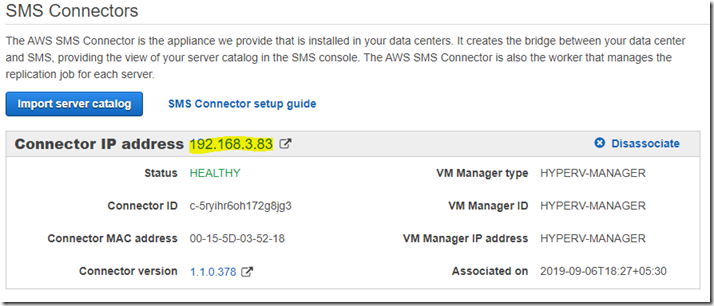

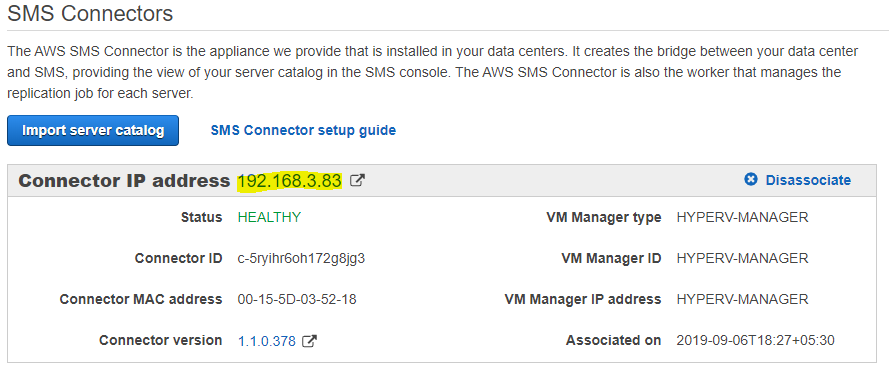

• You will able to see our connector appliance that was installed in our on-premises environment.

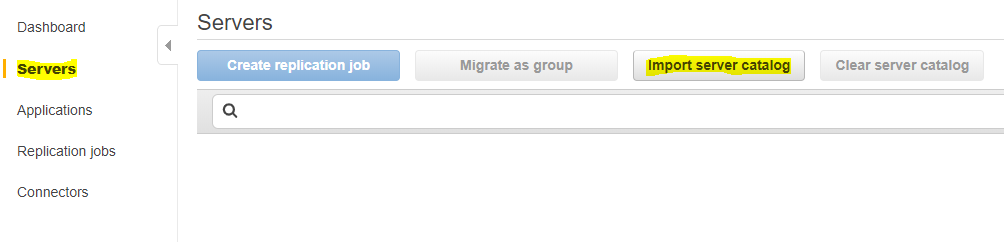

• Click on the Import server catalog to get the list of VMs which are available in the Hyper-V host.

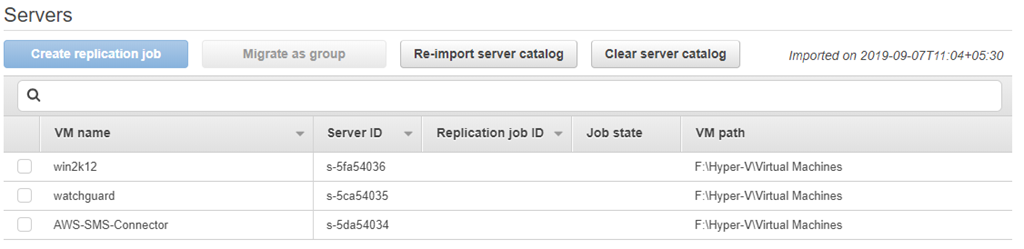

• After a few seconds, you will get the list of available VMs in your on-prem environment.

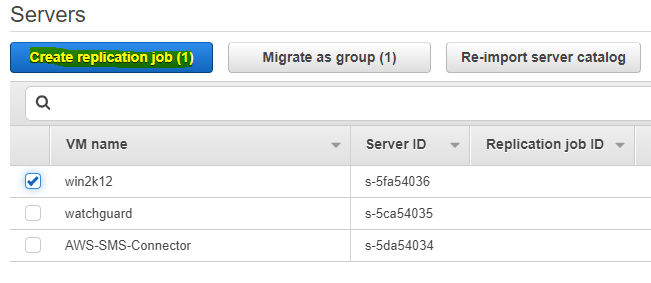

• Select the server to migrate to AWS and click on Create Replication Job.

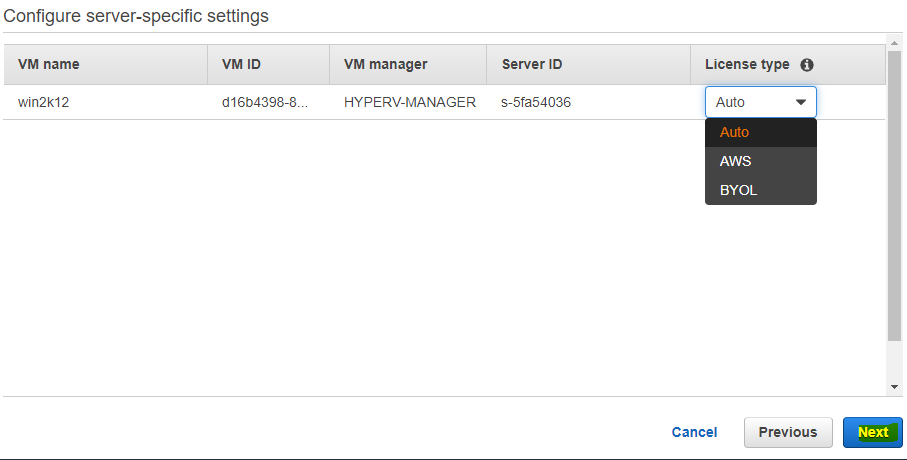

• Desire the License type from the drop-down list and click Next.

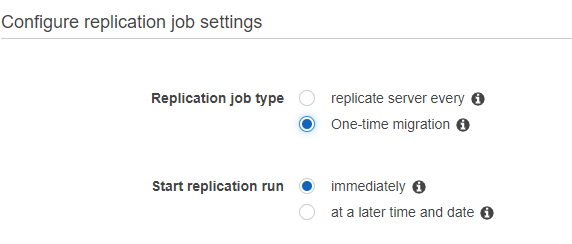

• Select the Replication Job Type & Start replication run settings based on your requirements.

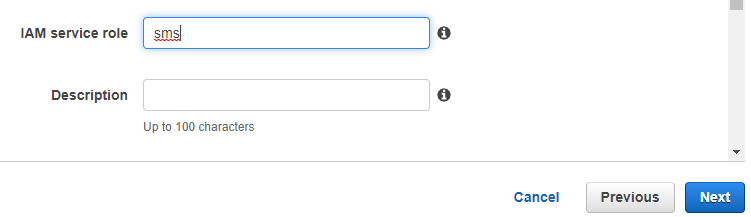

• Provide the IAM role name which we created earlier and click on Next.

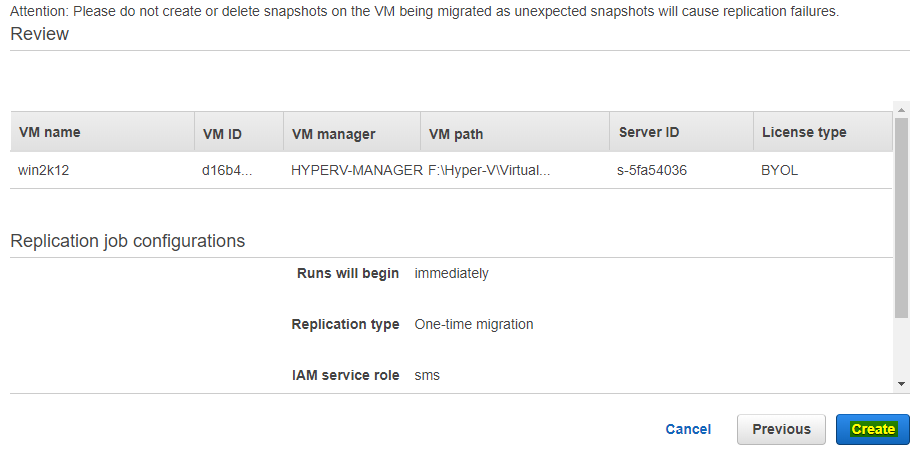

• Click on the create button to start the Migration process.

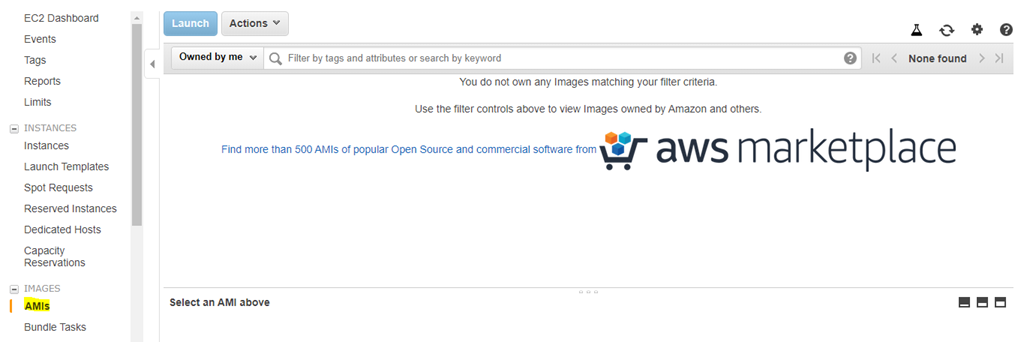

• Once the migration is completed, a new AMI will be available under the images section.

REFERENCE

https://docs.aws.amazon.com/server-migration-service/latest/userguide/HyperV.html

Thanks for reading this blog. We hope it was useful for you to learn the steps to migrate Windows VM from Hyper-V to AWS.
