Steps to migrate users from on-premises Active Directory to Azure

In this blog, we will show you the steps to migrate users from on-premises Active Directory to Azure using Microsoft Azure Portal.

REQUIREMENTS

• Microsoft Azure Subscription.
• Windows VM with AD installed

“Note: We are using windows 2016 VM for this demo.

CREATING NEW ACTIVE DIRECTORY

• Log in to Azure portal and Select New option.

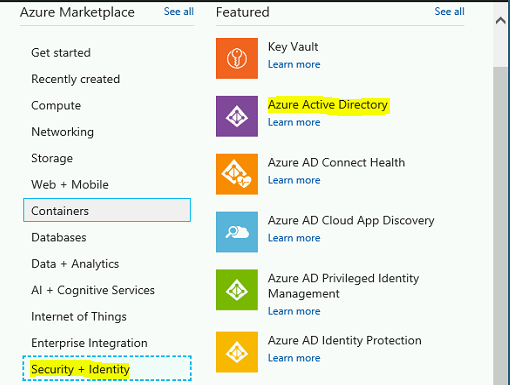

• Select on Security + Identity and click on Azure Active Directory link.

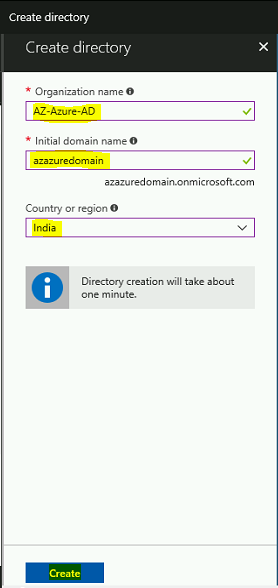

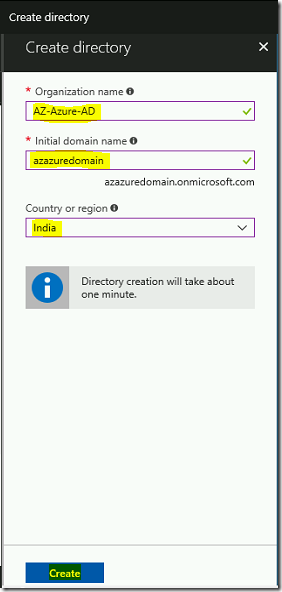

• Provide the required information and Click on Create button.

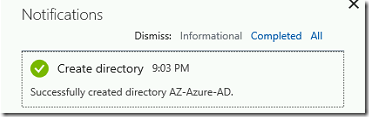

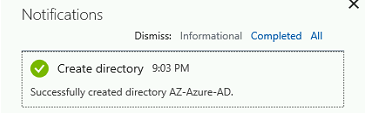

• It will take few minutes to complete the creating task.

• Now, Re-login into your Azure portal and you will see your new domain on the account menu list.

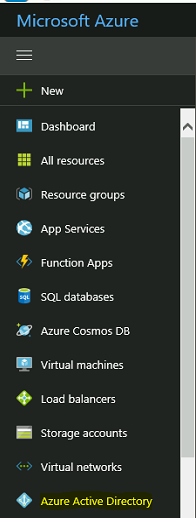

• Click on the Active directory link from the service list.

CREATING AN ADMINISTRATOR ACCOUNT

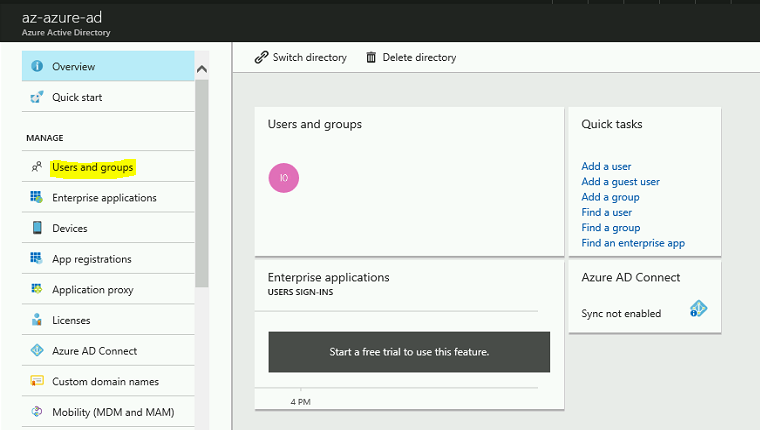

• From the Azure Active Directory service, Click on users and groups link.

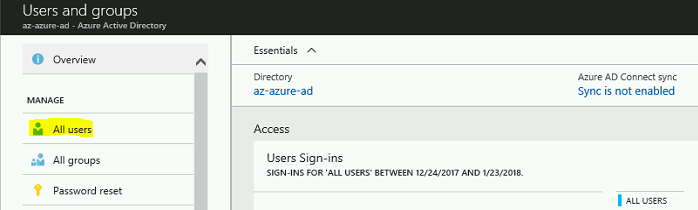

• Select the All users link.

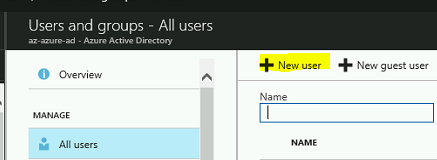

• Click on New User link.

• Provide the Name and username of the new administrator account. You need to add the user account in username@domainname.onmicrosoft.com format.

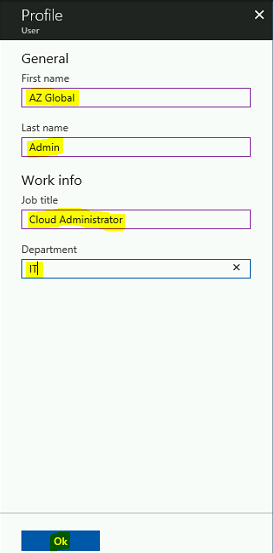

• Click on the profile link and provide the required information.

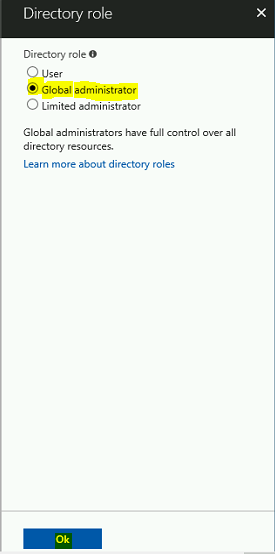

• Leave the properties tab by default. Click on Directory Role link and select the Global Administrator option and click OK.

• Click on Show Password link and make a note of it. We have to reset the password for the administrator account.

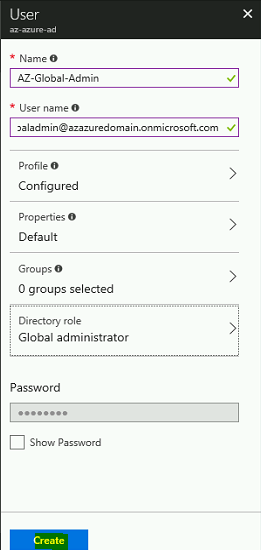

• Verify the provided information and click the Create button.

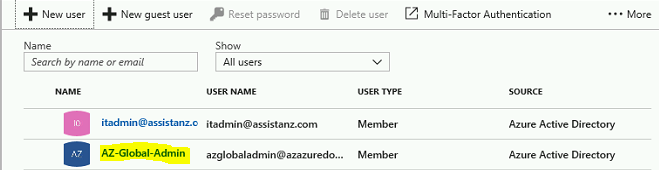

• The new user will be available on the user list.

RESET THE GLOBAL ADMINISTRATOR PASSWORD

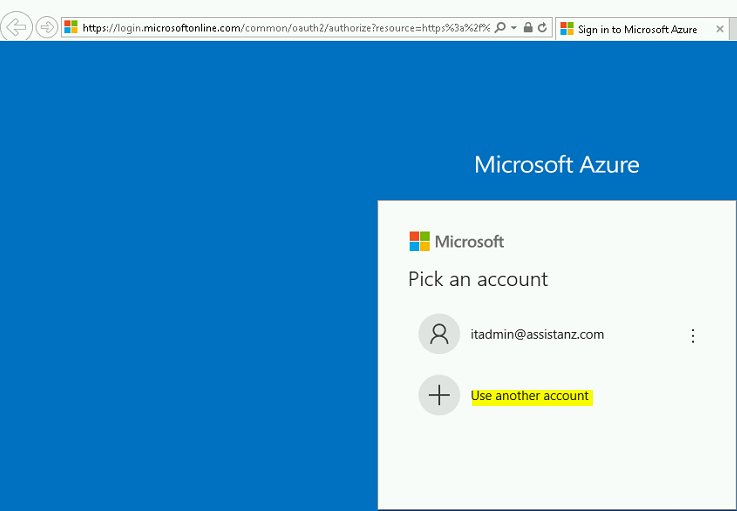

• Open the Azure portal URL http://portal.azure.com and click to use another account.

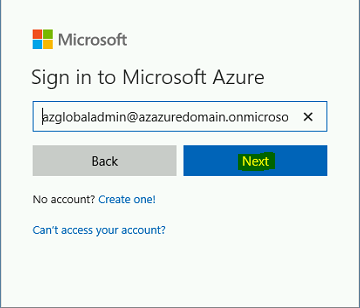

• Provide the Azure global administrator name and click Next.

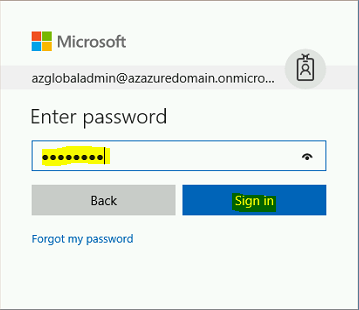

• Provide the temporary password and select the Sign in button.

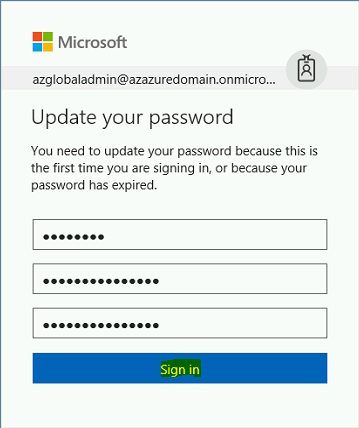

• It will prompt us to update the password for the global administrator account. Provide the required information and click Sign in.

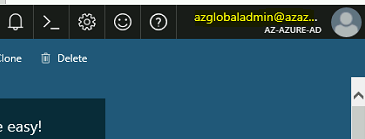

• We have logged into the Azure portal successfully.

DOWNLOAD AND INSTALL AZURE AD CONNECT

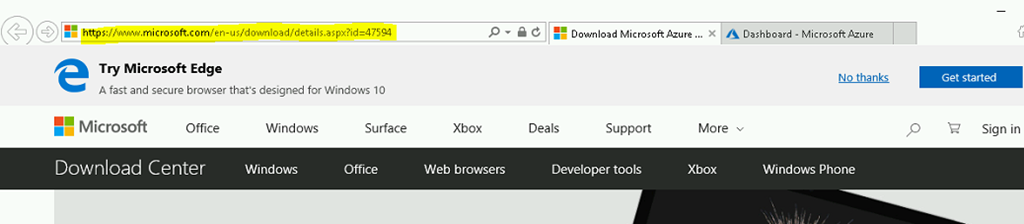

• Open the web browser and access the URL https://www.microsoft.com/en-us/download/details.aspx?id=47594

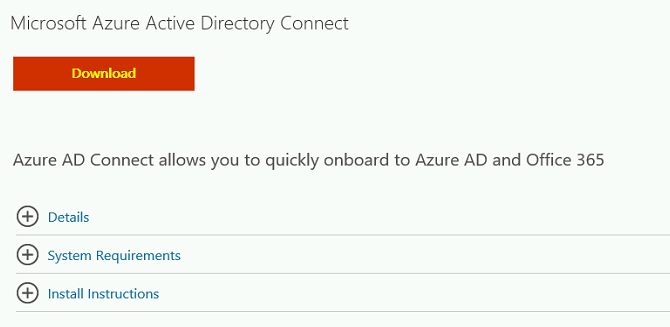

• Scroll down and click on Download button.

• Download the MSI file and save it to the desktop.

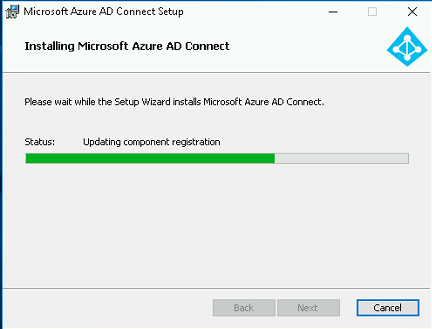

• Double-click on the MSI file and follow the wizard to complete the installation process.

• After the installation completes, A new shortcut will be available on the desktop.

REVIEW ON-PREM ACTIVE DIRECTORY

• We have already installed a new Active Directory domain as azdomain.local

• Open the Active Directory users and computers snap-in and select the users OU.

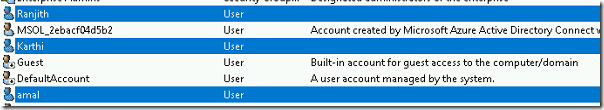

• We created three AD user for the demo purpose.

SYNCHRONIZE THE ON-PREM AD TO AZURE AD

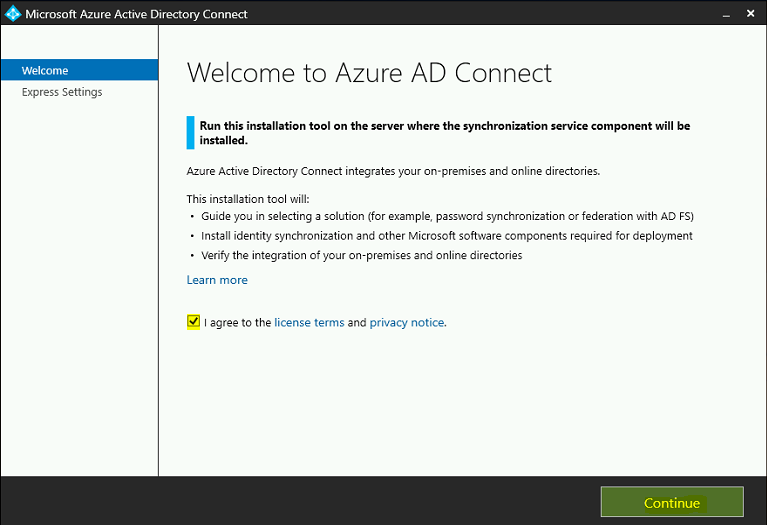

• Double click on the Azure AD connect shortcut from the desktop. Agree to the license and click continue.

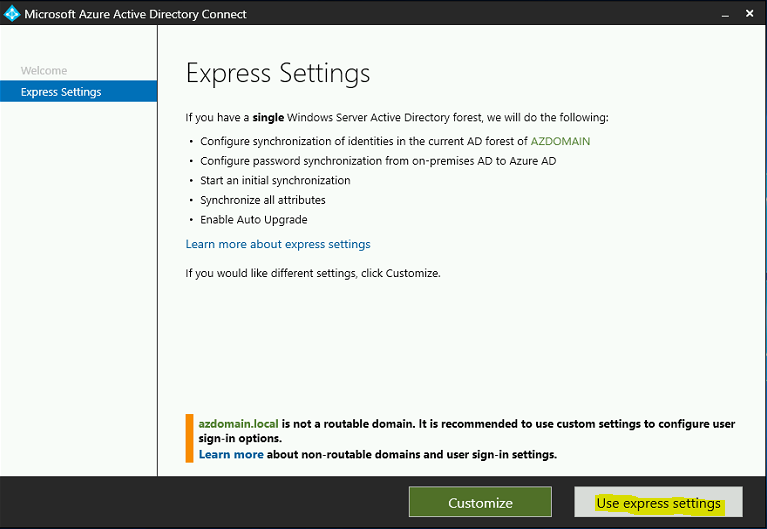

• Click on the Express settings link.

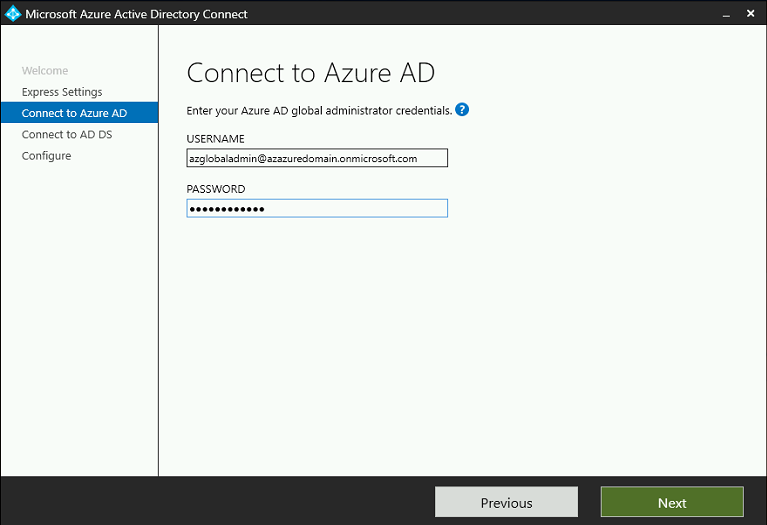

• Provide Azure Global Administrator credentials.

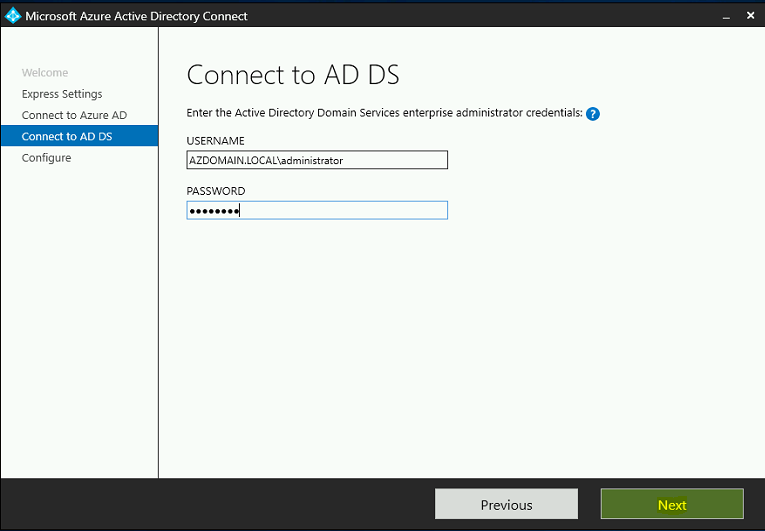

• Provide the local domain administrator credentials.

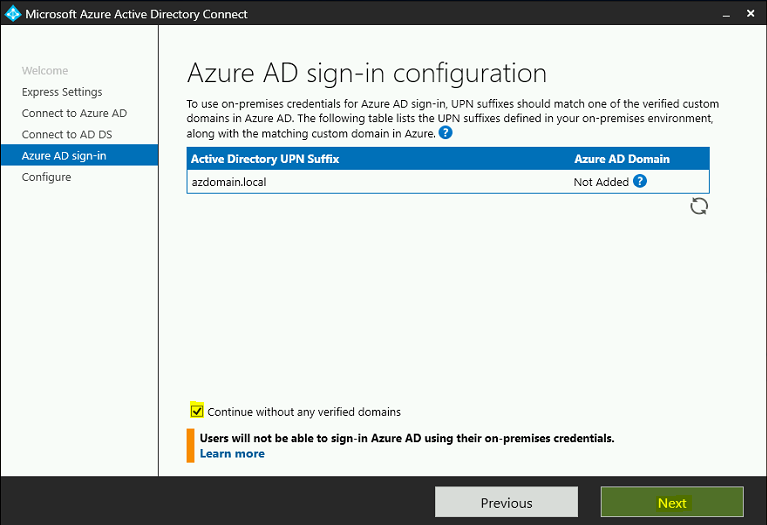

• We have not configured the UPN Suffixes for this demo. Click on Continue without any verified domains checkbox and proceed to next screen.

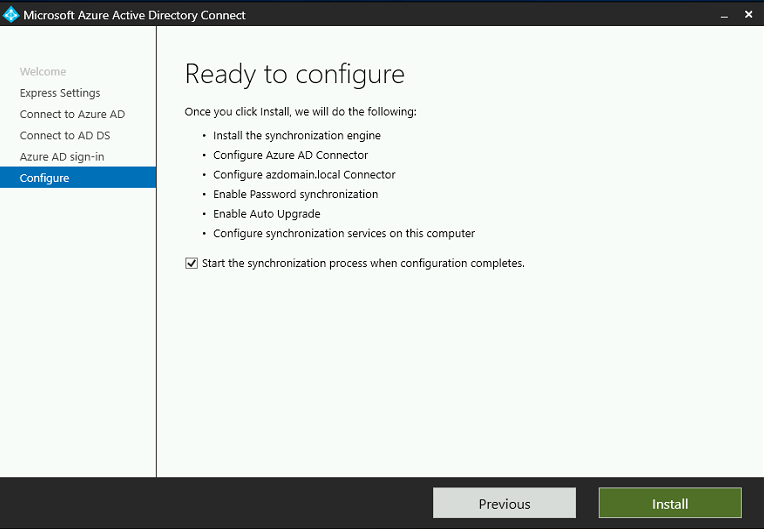

• Click on Install button to start the synchronization between the on-premises and Azure AD.

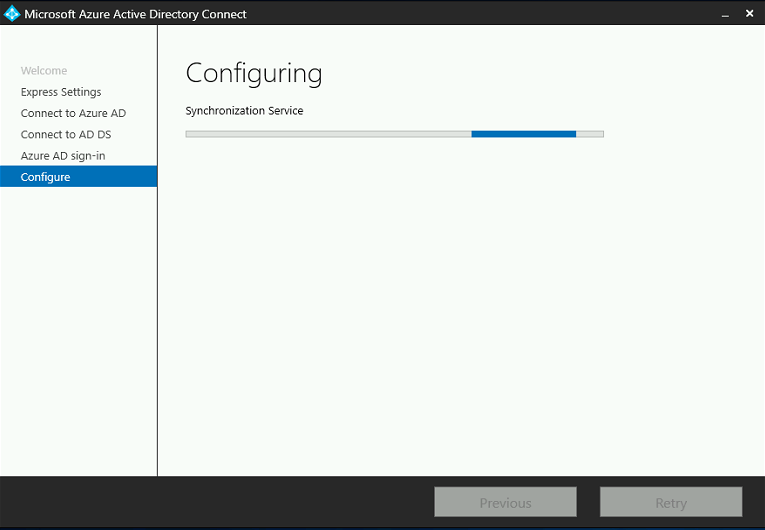

• It will take few minutes to complete the synchronization process.

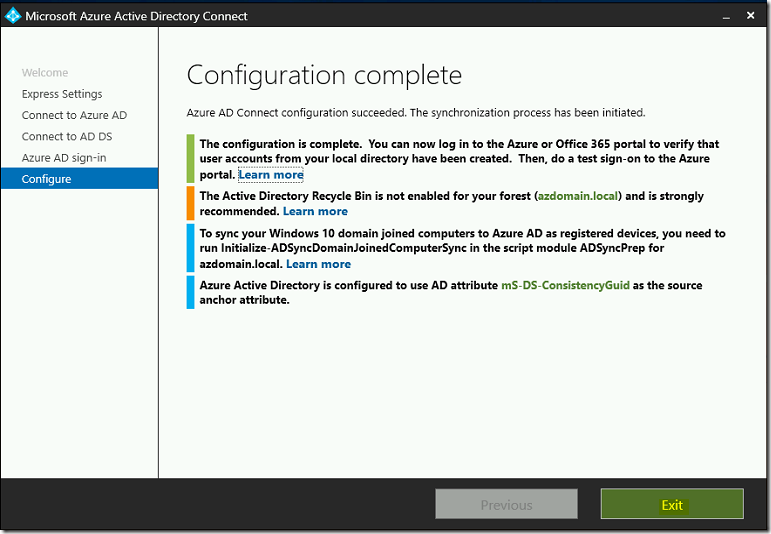

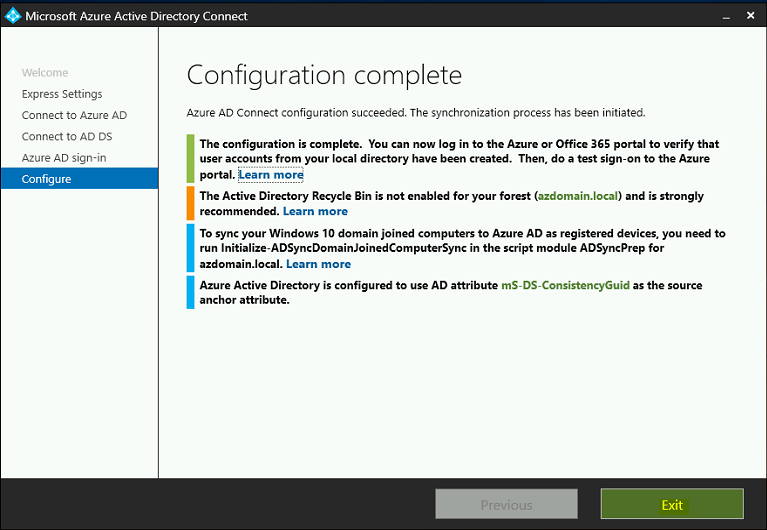

• Click on Exit button to close the wizard.

VERIFICATION

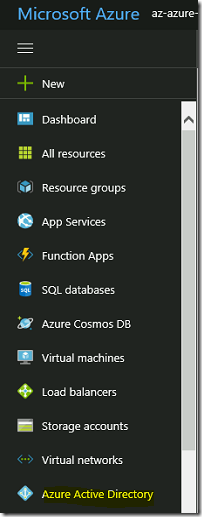

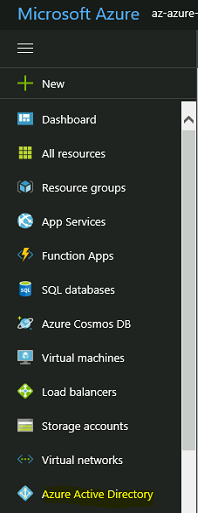

• Log in to the Azure portal using Global Administrator credentials and click on Active Directory services link.

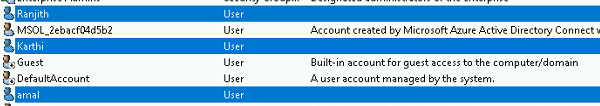

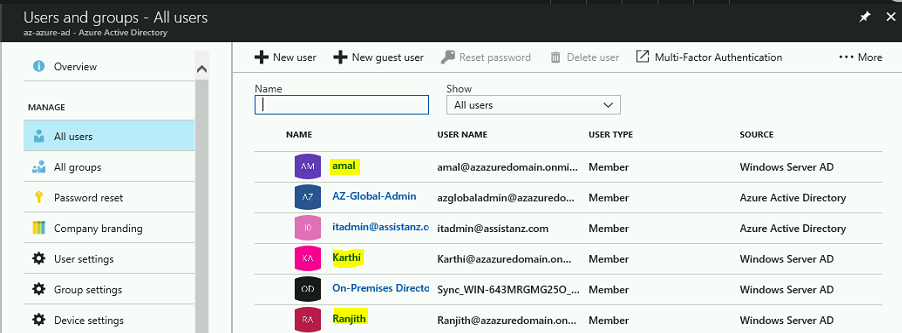

• Click on All users link and you can able to view our local AD users on the list.

• We can use these users to access the Azure portal.

LINKS

https://blog.assistanz.com/azure-active-directory-overview/

VIDEO

Thanks for reading this blog. We hope it was useful for you to learn about Active Directory Synchronization between on-premises and Azure AD.
