Steps to configure E-mail notification for EC2 instance

In this blog, we will show you the steps to configure E-mail notification for EC2 Instance in AWS.

ENVIRONMENT OVERVIEW

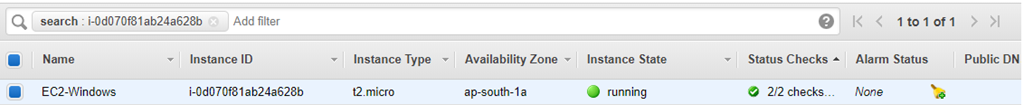

• We created a t2, micro EC2 windows instance for this demo.

CREATING SNS (SIMPLE NOTIFICATION SERVICE) TOPIC

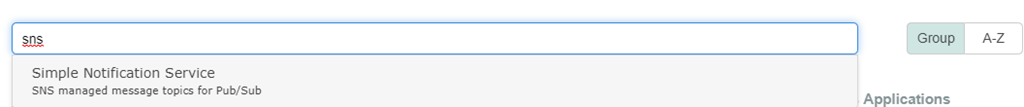

• Login in to your AWS account and search for SNS service.

• Select the Topics option.

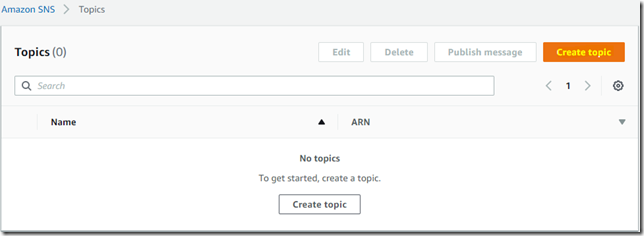

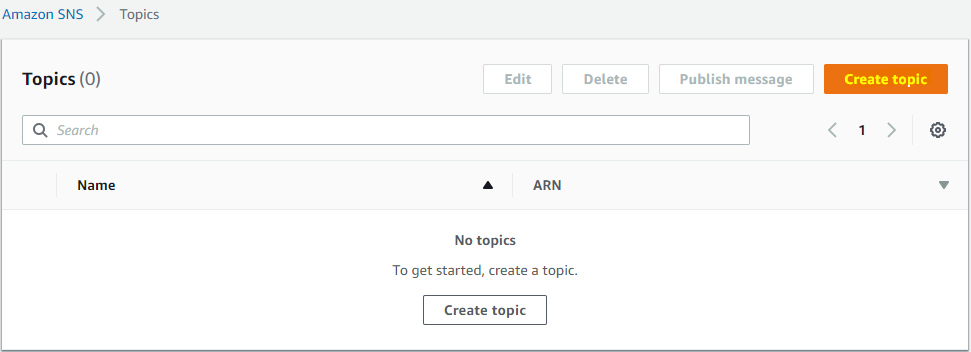

• Click on Create Topic button.

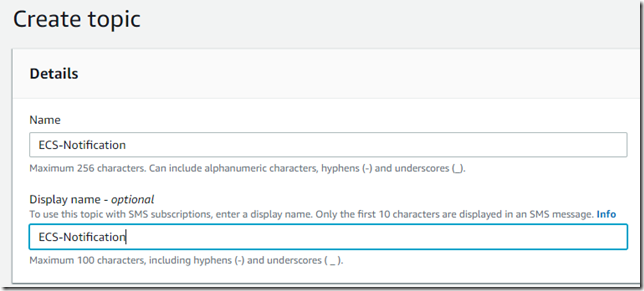

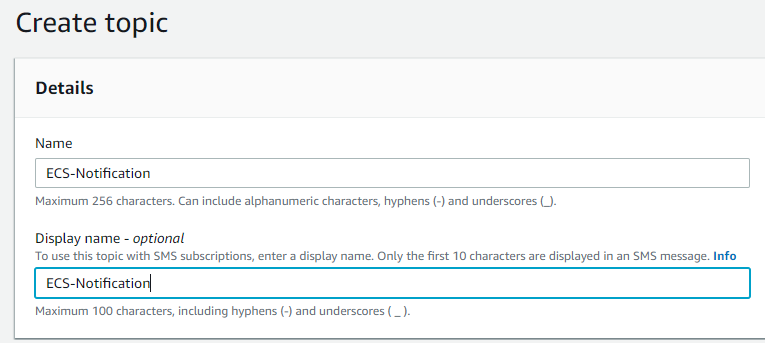

• Provide the Name and Display Name and click on Create topic.

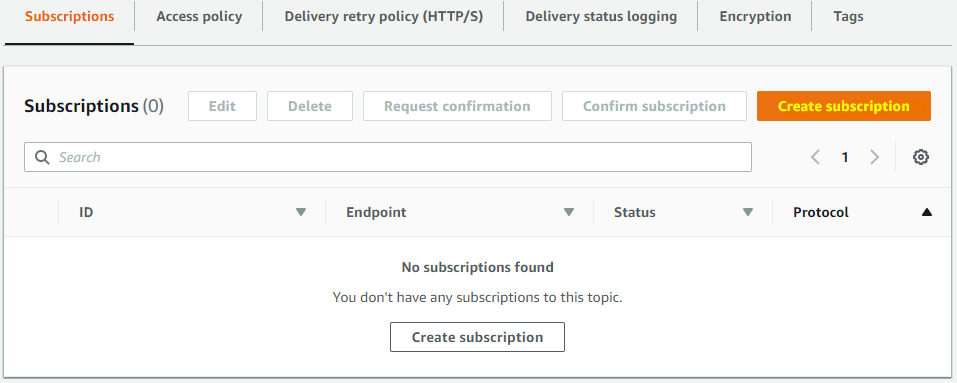

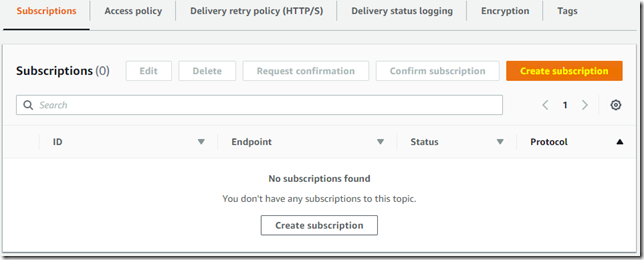

• Under Subscription topic, select the Create subscription option.

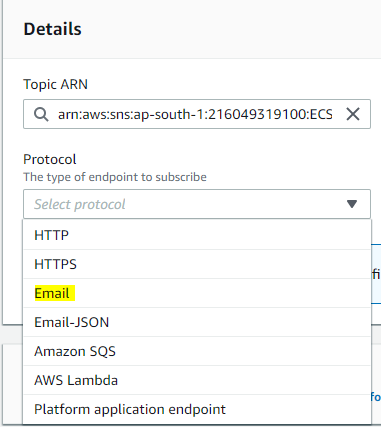

• From the create subscription window, select the protocol as E-mail from the drop-down list.

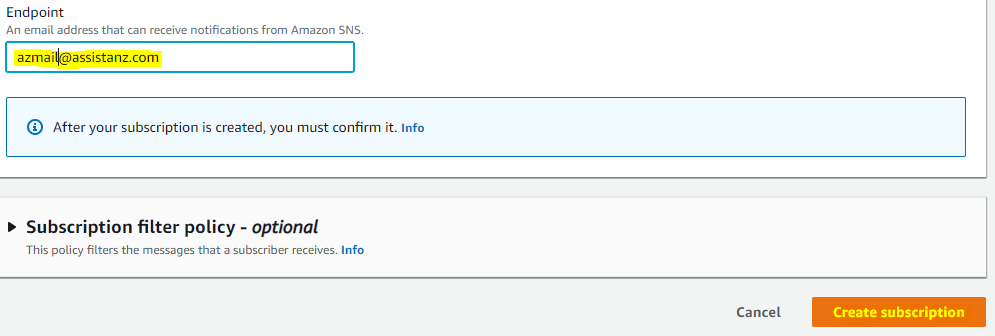

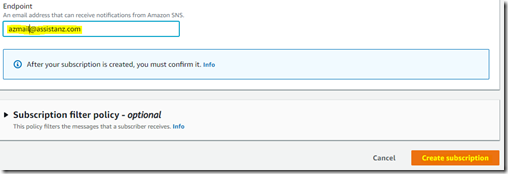

• Provide your e-mail address and click on create the subscription.

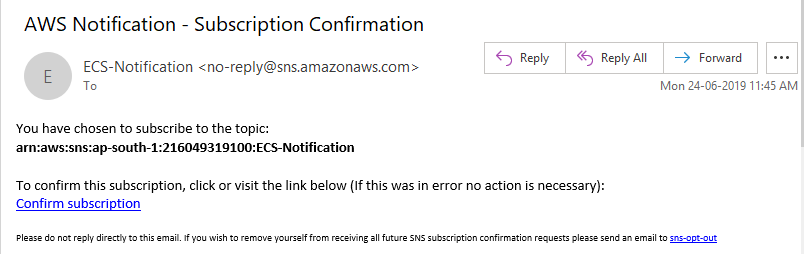

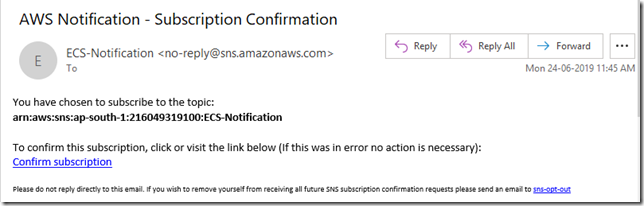

• You will receive a confirmation E-mail to your inbox. Click on the confirm subscription link.

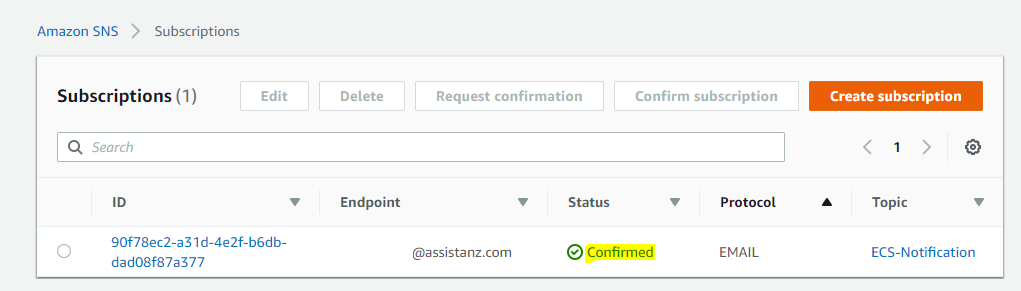

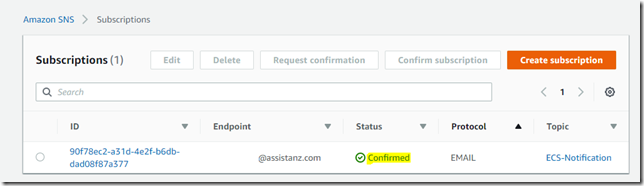

• Once you confirmed the subscription, the status will be changed to confirmed in SNS.

CREATING RULES IN CLOUDWATCH

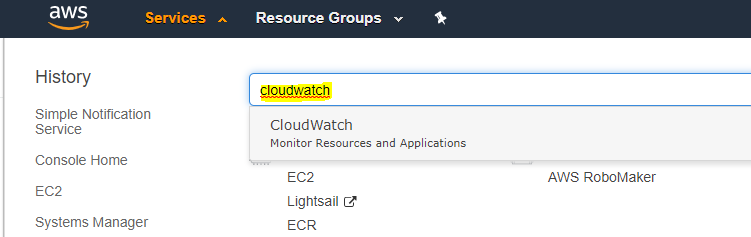

• From the services page, search for cloudwatch.

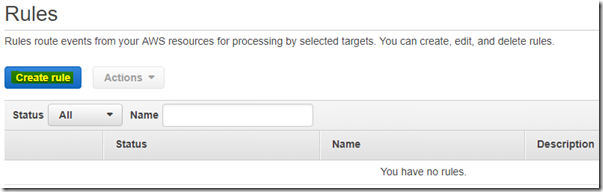

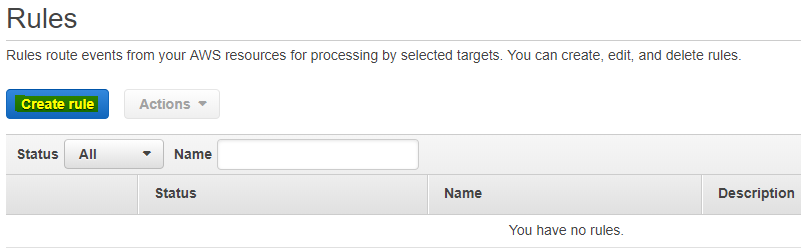

• Select the Rules link and click on create rule button.

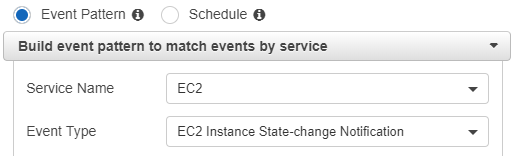

• Under Event Source, select the service name as EC2 and event type as EC2 Instance State-change Notification.

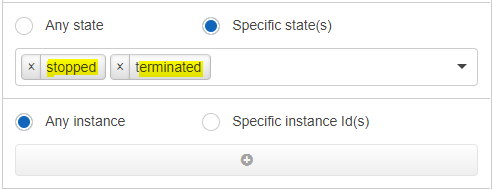

• We select EC2 state as stopped and terminated for the drop-down list.

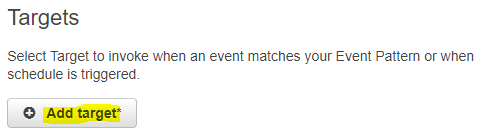

• In the target section, click on Add target.

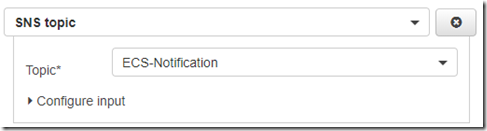

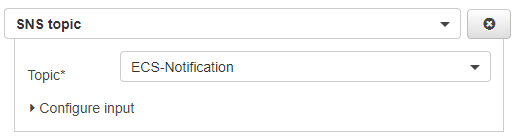

• From the drop-down list, select SNS topic and select our newly created topic.

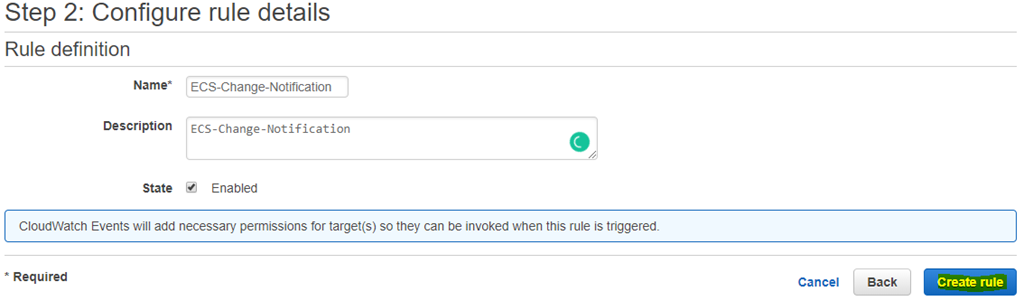

• Review all the selected settings and click on Configure details. Provide the name and description for this rule and click on create rule button.

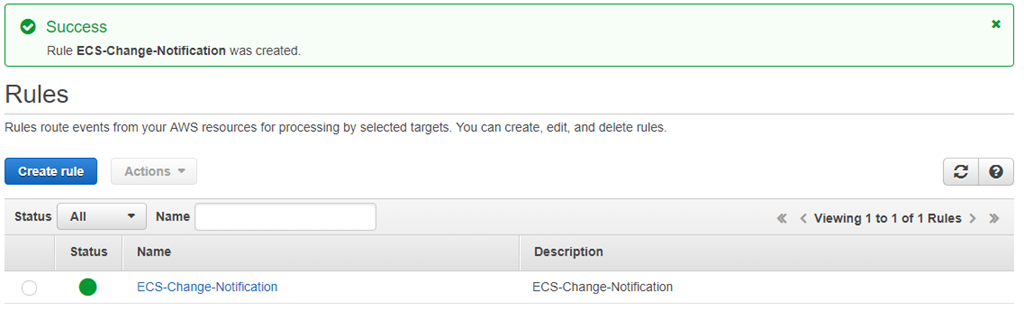

• The rule created successfully.

VERIFICATION

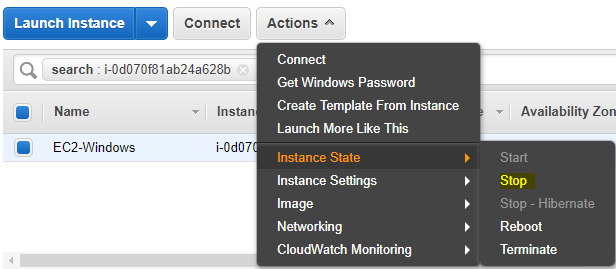

• For testing purpose, Goto EC2 Instance page, and shut down the machine.

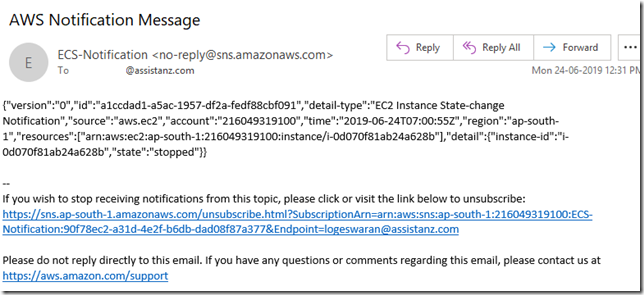

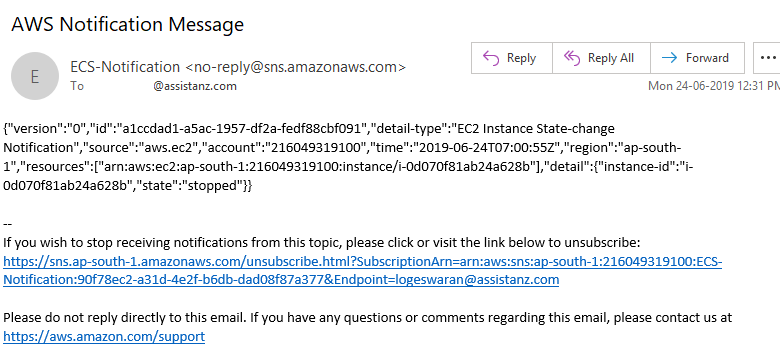

• Once the instance state has been changed to stop, you will receive the notification mail to your inbox.

REFERENCE

E-mail Notification

Thanks for reading this blog. We hope it was useful for you to learn about the steps to configure E-mail notification for EC2 instance.
