In this blog, we will show you the Steps to Add an EC2 Windows Instance in AWS SSM.

ENVIRONMENT OVERVIEW FOR SSM CONFIGURATION

• For demo purposes, we created a windows 2012 R2 EC2 instance under the Mumbai region.

CREATING IAM ROLE FOR EC2 SSM

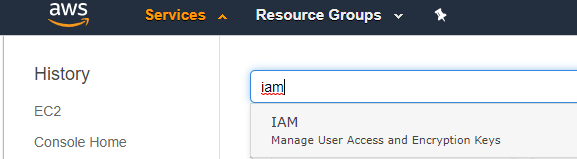

• Go to the services page and search for the IAM service.

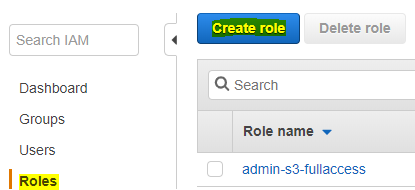

• Click on Roles option and create a new role.

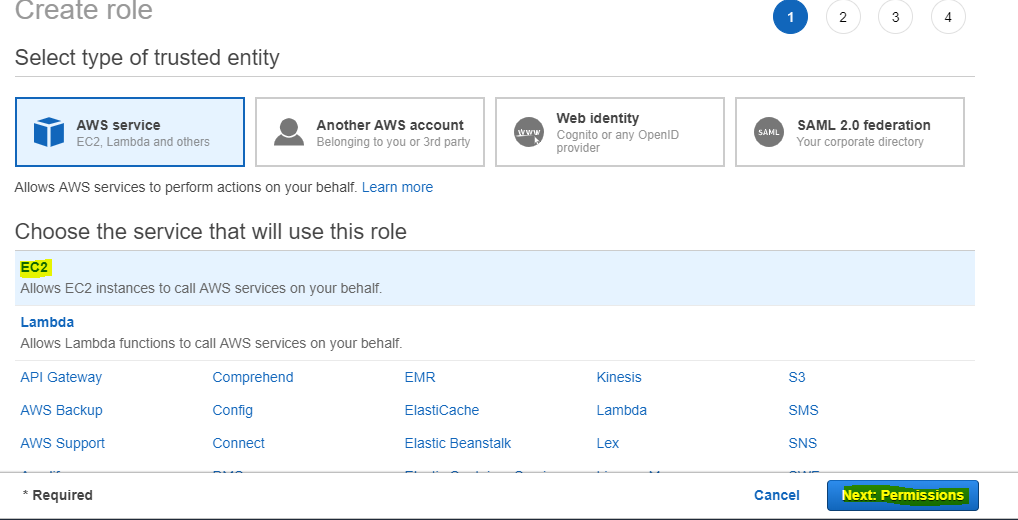

• Select the EC2 Service and click Next.

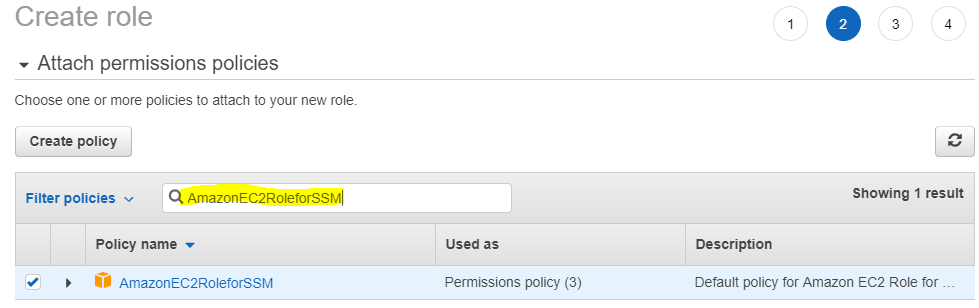

• Search for AmazonEC2RoleforSSM and select it. Then click Next.

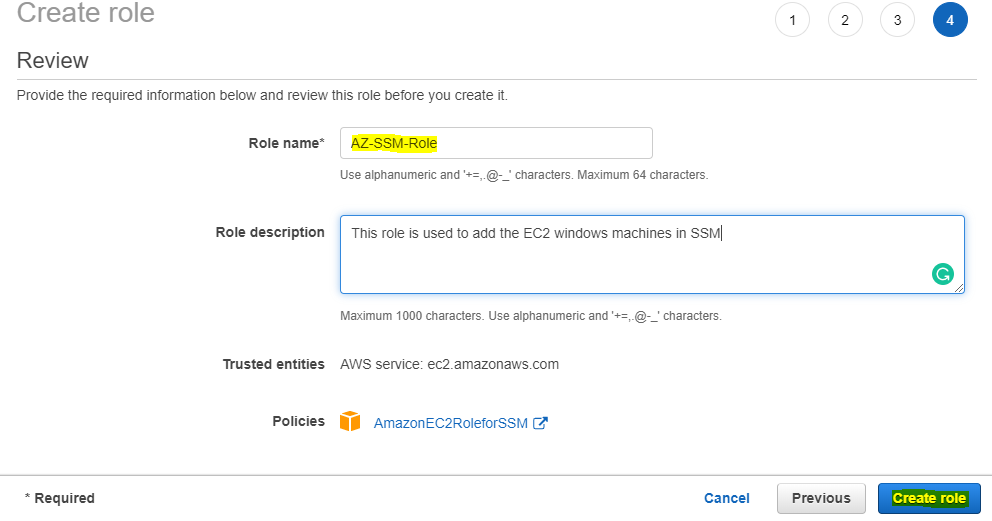

• In the review page, provide the role name and description and click on create the role.

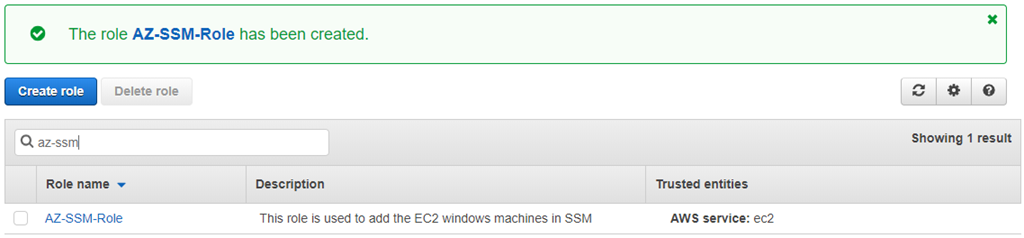

• The role created successfully.

ASSIGNING THE ROLES TO EC2 INSTANCES

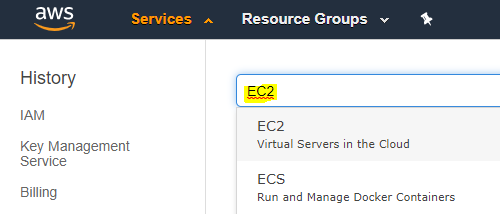

• Go to the services page and access EC2 service.

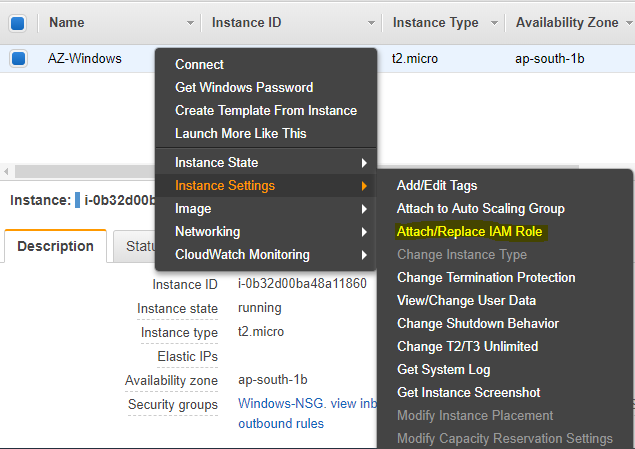

• Right click on EC2 instance and go to instance settings and click on Attach/Replace IAM role.

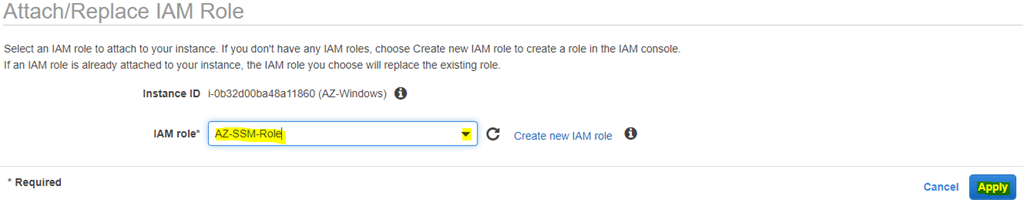

• Select the newly created role from the drop-down list and click the Apply button.

VERIFICATION

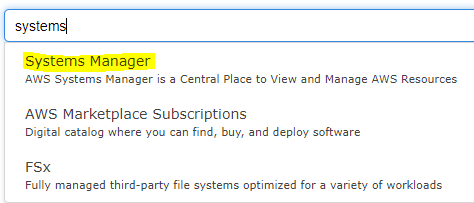

• Go to AWS services and search for systems manager.

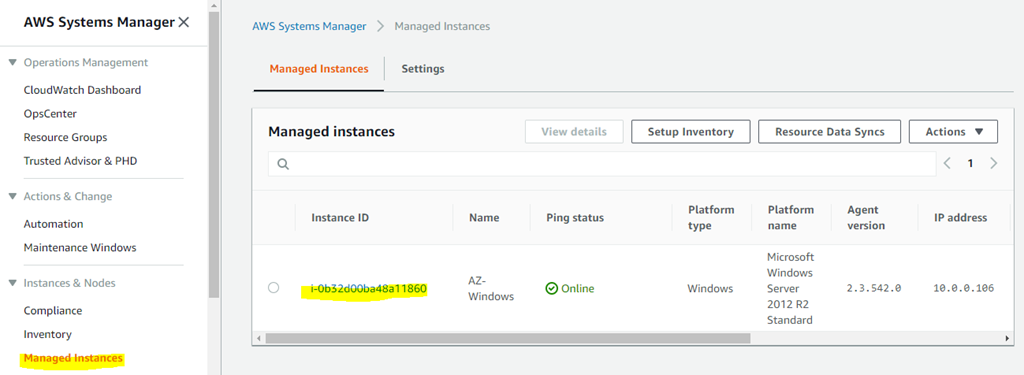

• Click on Managed Instances under Instances & Nodes. You will able to see your EC2 machine on the list.

REFERENCE

https://docs.aws.amazon.com/systems-manager/latest/userguide/sysman-install-win.html
